SBS (For braking)
Features
- Operates immediately at power off.
- There is no need to adjust gap when mounted.
- Superior braking durability and maintain stable braking force.
- Realized small size with high torque by multi-plate structure.
- Static friction torque could be adjustable by changing number of disc.
Indication of type
Torque/Rated voltage
| Model SBS |
120 | 140 | 170 | 230 | 300 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4D | 8D | 4D | 8D | 4D | 8D | 4D | 8D | 4D | 8D | |
| Static friction torque Nm |
15 | 30 | 30 | 60 | 60 | 120 | 260 | 500 | 800 | 1500 |
| Rated voltage DC-V |
24 | |||||||||

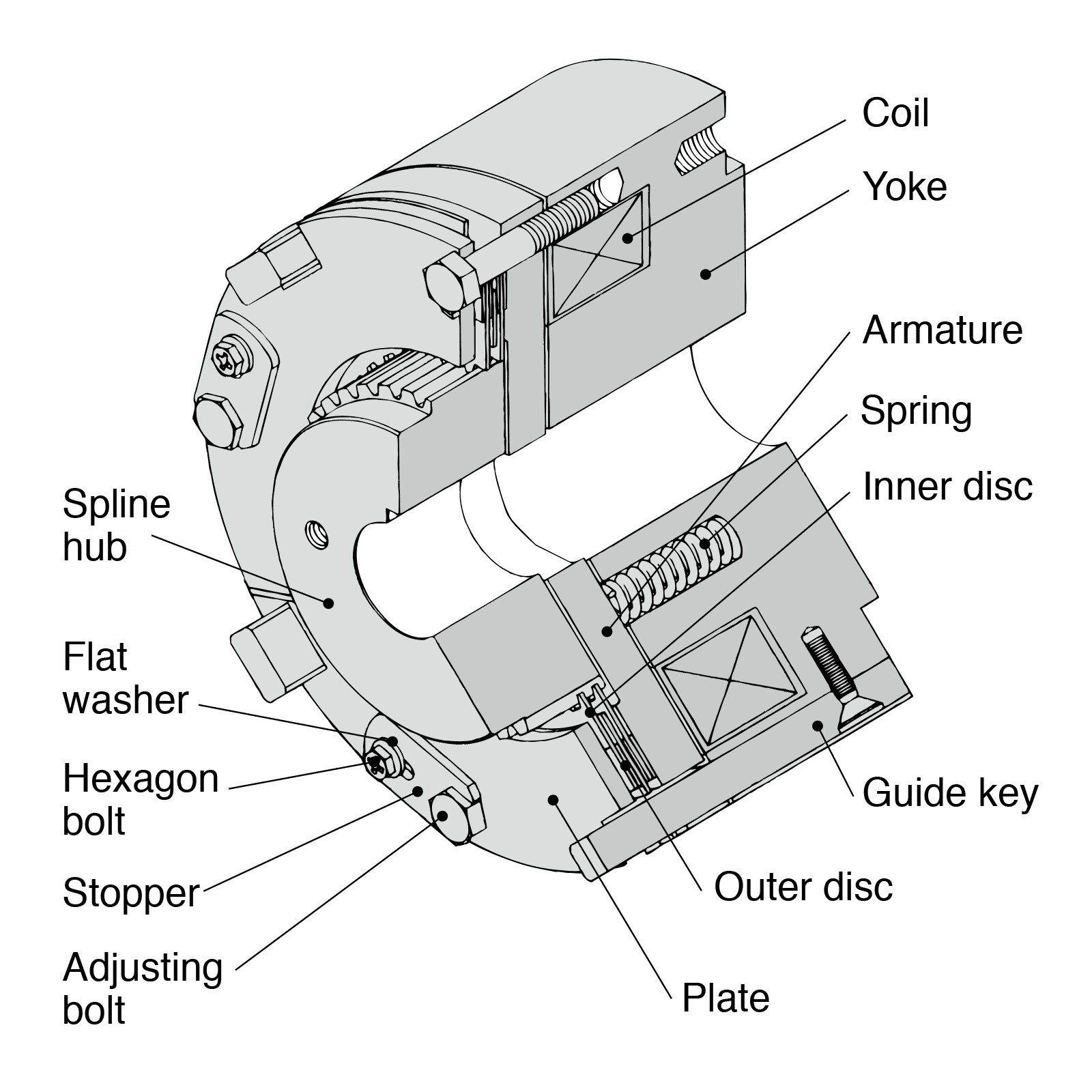

Structure
Characteristics
Response Characteristics
| Model/ SBS |
120 | 140 | 170 | 230 | 300 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 4D | 8D | 4D | 8D | 4D | 8D | 4D | 8D | 4D | 8D | |
| Armature pull-in time ta (ms) |
200 | 300 | 400 | 600 | 900 | |||||
| Armature release time tar (ms) |
150 | 200 | 200 | 250 | 300 | |||||
Allowable workload/Max speed/Inertia J
| Model | Allowable workload (J) | Max speed (r/min) | Inertia J (kgm2) |
|||
|---|---|---|---|---|---|---|
| per single time |
per Minute |
Limit for adjustment |
at braking | at idling | ||
| SBS-120‒4D | 3000 | 1400 | 8.50×106 | 2000 | 4000 | 2.25×10-4 |
| SBS-120‒8D | 5000 | 1400 | 8.50×106 | 2000 | 2000 | 4.00×10-4 |
| SBS-140‒4D | 4000 | 2000 | 1.10×107 | 1800 | 3600 | 8.75×10-4 |
| SBS-140‒8D | 8000 | 2000 | 1.10×107 | 1800 | 1800 | 1.35×10-3 |
| SBS-170‒4D | 6000 | 3000 | 1.70×107 | 1800 | 3000 | 2.80×10-3 |
| SBS-170‒8D | 14000 | 3000 | 1.70×107 | 1800 | 1800 | 3.50×10-3 |
| SBS-230‒4D | 12000 | 6000 | 4.80×107 | 1500 | 2200 | 0.0120 |
| SBS-230‒8D | 26000 | 6000 | 4.80×107 | 1500 | 1500 | 0.0156 |
| SBS-300‒4D | 15000 | 10000 | 7.90×107 | 1200 | 1600 | 0.0843 |
| SBS-300‒8D | 45000 | 10000 | 7.90×107 | 1200 | 1200 | 0.114 |

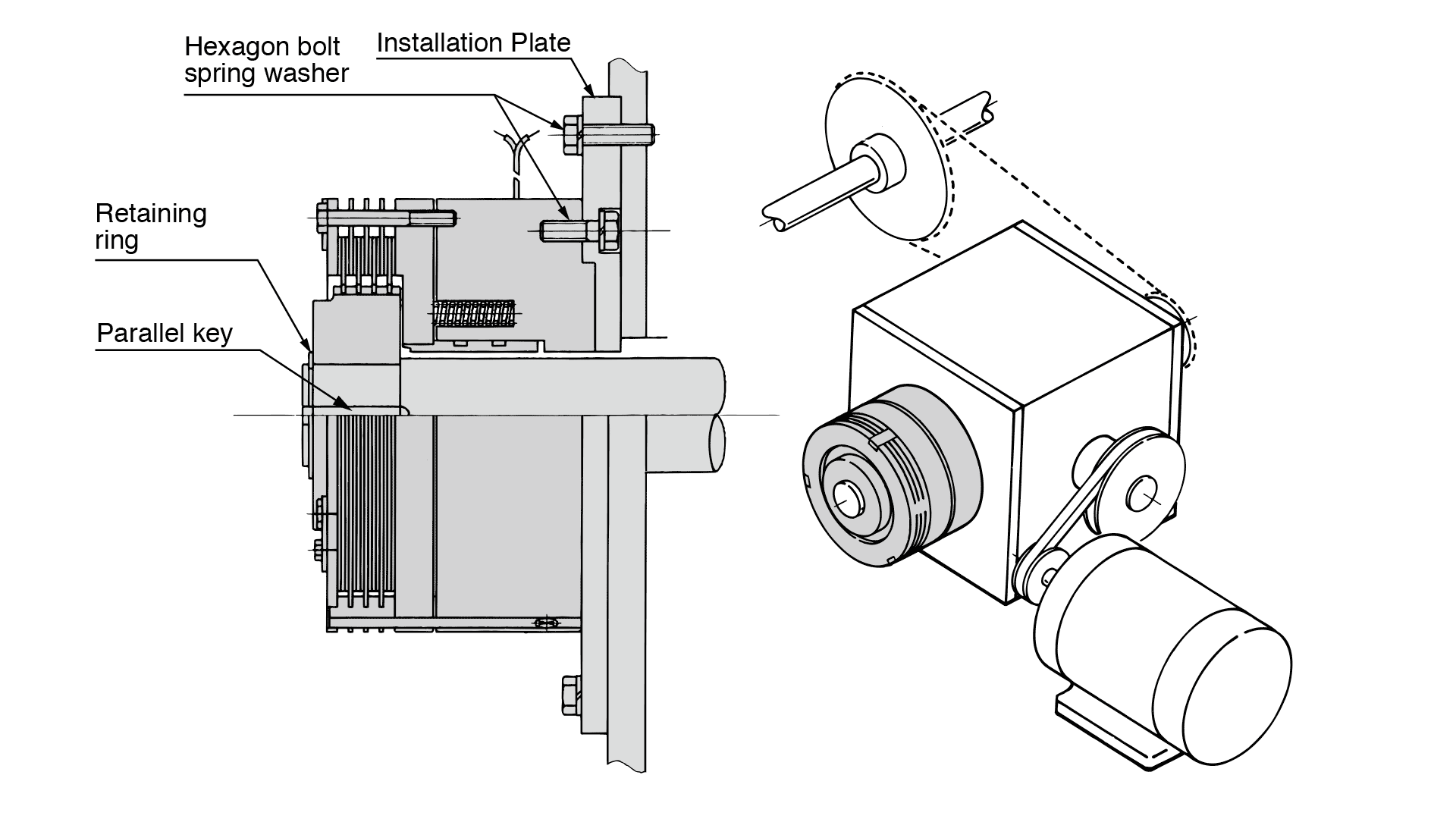

Installation Example
