Clutches and Brakes

Power source Boxes and Control Tools

Our power sources and control tools will enable the maximum performance of our electromagnetic clutches/brakes, giving you the best possible control for your application.

Model Technique

Function

Specification

Features

Input signal

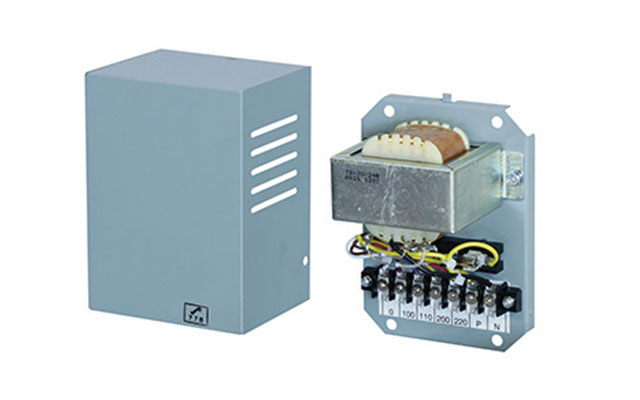

DMP type
power box


small capacity
power box
Built-in transformer,
Silicon rectifier
Rectifier and power source

Input
AC100/110V
AC200/220V50/60Hz

Rated output
DC24V
20~200W

Compact power source -
TMP type
controller
Rated exciting field
With a torque adjustment function,
Contactless
Clutch/brake
ON・OFF

Input
AC100/110V
AC200/220V50/60Hz

Rated output
DC12~24V
40W

Built-in resistance for torque adjustment (On brake side) No voltage, With contact

FMP type
controller
Rated exciting field,
Contactless
Clutch/brake
ON・OFF

Input
AC100/110V
AC200/220V50/60Hz

Rated output
DC24V
10W

Long life

With time lag circuit to avoid torque interference

No voltage, With contact or
No voltage, Without contact

EMPtype
controller
2 x over exciting field,
Contactless
Clutch/brake
ON・OFF

Input
AC100/110V
AC200/220V50/60Hz

Rated output
DC24V
25W, 70W

Long life

With time lag circuit to avoid torque interference

No voltage, With contact or
No voltage, Without contact

CSM type
controller
4 x over exciting field,
Contactless
PCB
Clutch/brake
ON・OFF

Input
AC100V, 30V 50/60Hz

Rated output
DC24V
55W

High speed operation,

Long life

With time lag circuit to avoid torque interference

No voltage, With contact or
No voltage, Without contact

FMPR type
controller
Dedicated to use with clutches/brakes operating without excitation field,
Contactless, With inverse exciting field
Clutch/brake
ON・OFF

Input
AC100/110V
AC200/220V 50/60Hz

Rated output
DC1~24V
70W

Dedicated to EPR type (Cell pack) series.

Usable for ERS type self break

No voltage, With contact or
No voltage, Without contact


Model List

DMP type power box
small capacity power box
TMP type controller
FMP type controller
EMP type controller
CSM type controller
FMPR type controller
