SBM (For braking)
Features
- Operates immediately at power off.
- There is no need to adjust gap when mounted.
- Superior braking durability and maintain stable braking force.
- Flexible mounting directions.

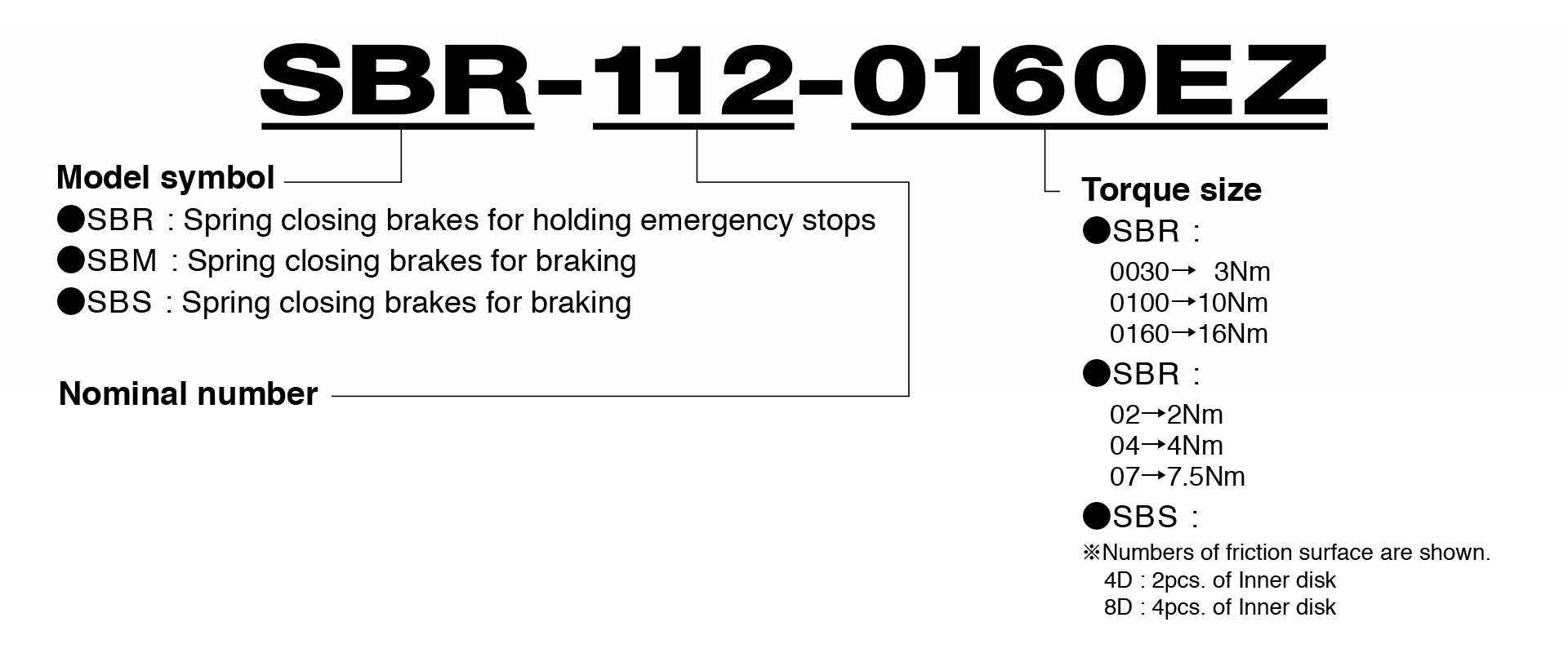

Indication of type
Torque/Rated voltage
| Model/SBM | 109-0020EZ | 109-0030EZ | 115-07 | 140-15 | 160-22 | 160-37 |
|---|---|---|---|---|---|---|
| Static friction torque Nm |
2 | 3 | 7.5 | 15 | 22 | 37 |
| Rated voltage DC-V |
DC90V | |||||

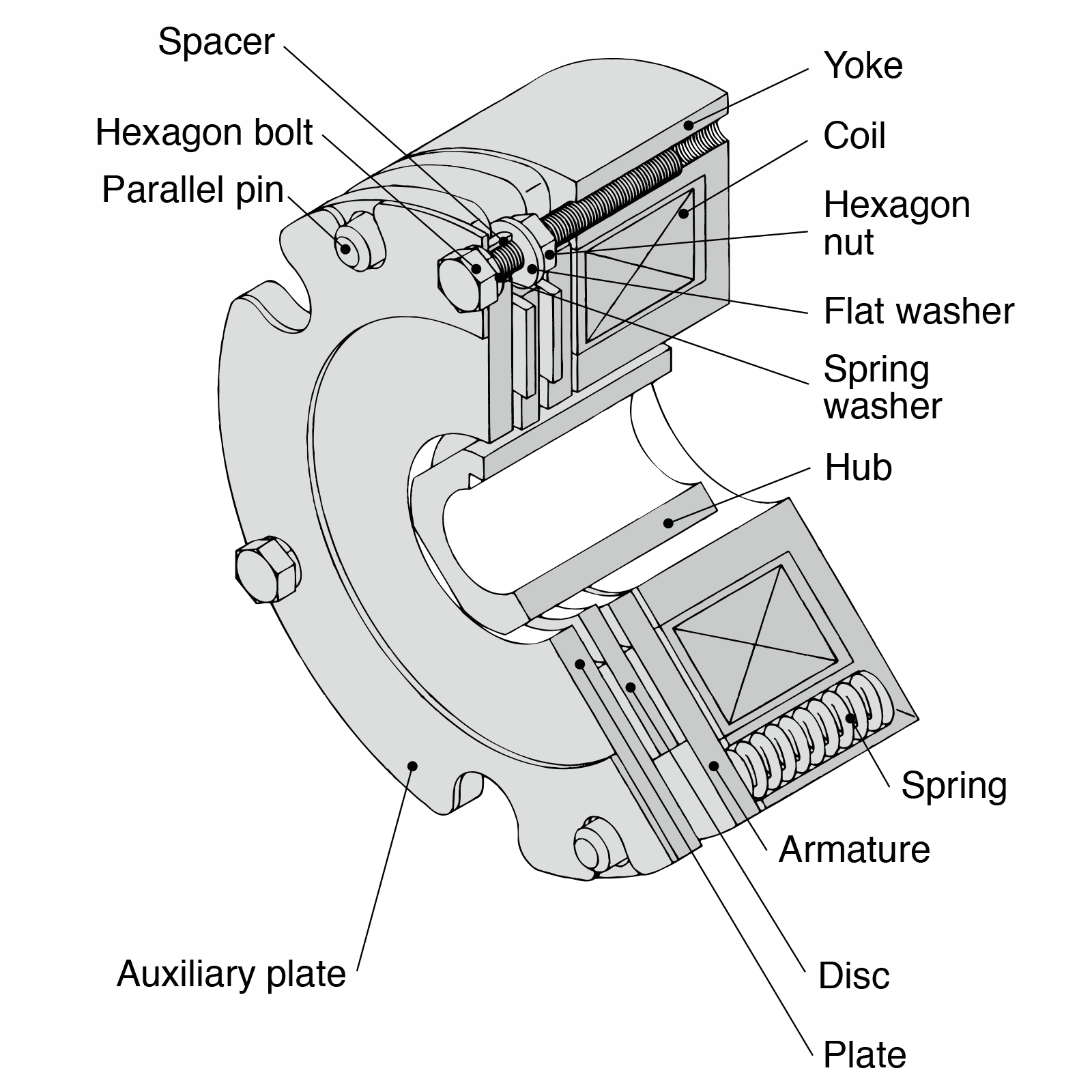

Structure
Characteristics
Response Characteristics
| Model/ SBM |
109-0020EZ | 109-0030EZ | 115-07 | 140-15 | 160-22 | 160-37 |
|---|---|---|---|---|---|---|
| Armature pull-in time ta (ms) |
60 | 60 | 60 | 80 | 130 | 140 |
| Armature release time tar (ms) |
30 | 30 | 20 | 30 | 40 | 40 |
Allowable workload/Max speed/Inertia J
| Model | Allowable workload (J) | Max speed (r/min) | Inertia J (kgm2) |
|||
|---|---|---|---|---|---|---|
| per single time |
per Minute |
Limit for adjustment |
at idling | at braking | ||
| SBM-109-0020EZ（*1） | （*2） | （*2） | 1.0×108 | 1800 | 3600 | 5.70×105 |
| SBM-109-0030EZ（*1） | （*2） | （*2） | 7.5×107 | 1800 | 3600 | 5.70×105 |
| SBM-115‒07 | 5000 | 1200 | 2.80×107（*3） | 1800 | 1800 | 1.75×10-4 |
| SBM-140‒15 | 8000 | 2000 | 3.80×107（*3） | 1800 | 1800 | 5.00×10-4 |
| SBM-160‒22 | 10000 | 2500 | 5.10×107（*3） | 1800 | 1800 | 1.00×10-3 |
| SBM-160‒37 | 10000 | 2500 | 5.10×107（*3） | 1800 | 1800 | 1.00×10-3 |
Please contact us for dynamic torque characteristics.
1.Listed specifications are for reference. Please contact us for more details.

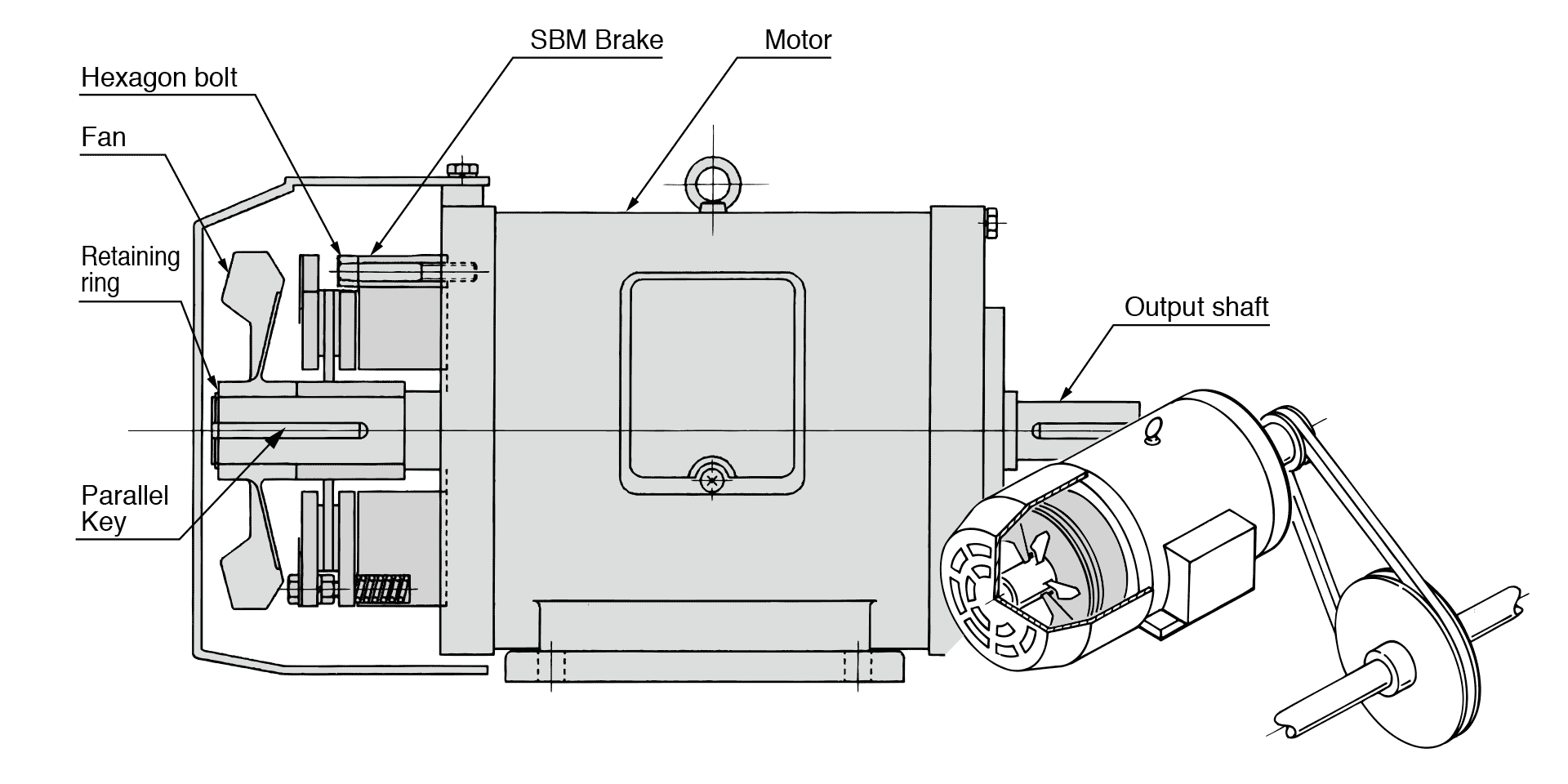

Installation Example
