SBR (For holding and emergency stops)
Features
-
Operates immediately at power off.
Secured during a power failure. - There is no need to adjust gap when mounted.
- Demonstrates 100% initial torque.
- Applies own high performance friction material.
- Thin type realized significant downsizing.
- Flexible mounting directions.
Indication of type
Torque/Rated voltage
| Model/SBR | 32-0003EZ | 42-0015EZ | 62-0030EZ | 82-0100EZ | 112-0160EZ | 152-0450EZ |
|---|---|---|---|---|---|---|
| Static friction torque Nm |
0.35 | 1.5 | 3 | 10 | 16 | 45 |
| Rated voltage DC-V |
24 | 24 | 24 | 24 | 24 | 24 |

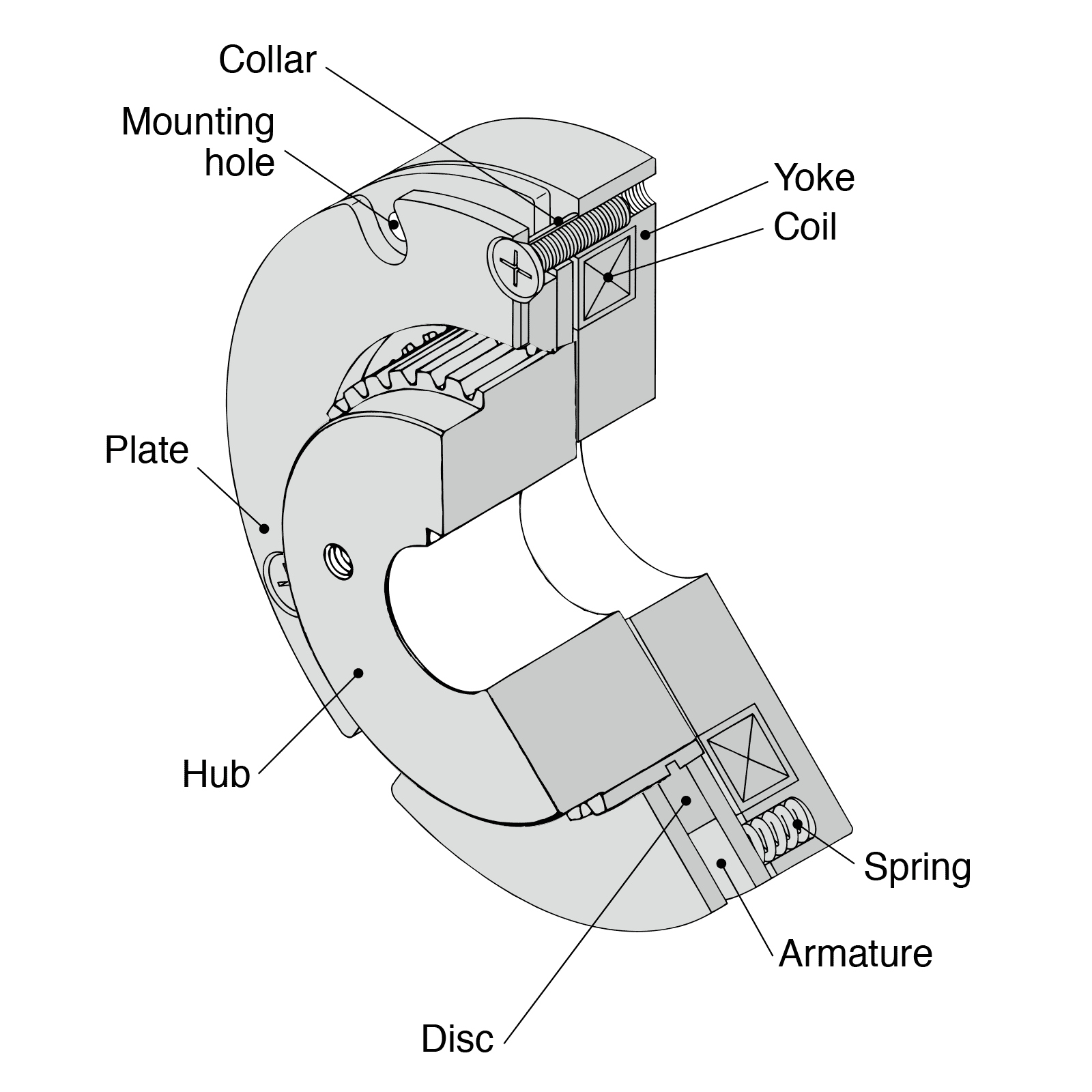

Structure
Characteristics
Response Characteristics
| Model/SBR | 32-0003EZ | 42-0015EZ | 62-0030EZ | 82-0100EZ | 112-0160EZ | 152-0450EZ |
|---|---|---|---|---|---|---|
| Armature pull-in time ta (ms) |
35 | 50 | 60 | 100 | 110 | 120 |
| Armature release time tar (ms) |
20 | 20 | 20 | 30 | 30 | 50 |
Allowable workload/Max speed/Inertia J
| Model/ SBR |
Allowable workload (J) | Max speed (r/min) |
Inertia J 〔kgm2〕 |
Mechanical life |
Type of insultation |
Initial attraction voltage (at 20℃) |
Initial repulsion voltage (at 20℃） |
Installation direction |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Per single time |
Total life | Normal operation (0r/min) |
Emergency operation |
|||||||
| 32‒0003EZ | 27 | 1.0×104 | 6000 | 3.7×10-7 | 2 million times |
200 times |
H types | below DC15V |
above DC1V |
All directions |
| 42‒0015EZ | 100 | 4.5×104 | 2.4×10-6 | |||||||
| 62‒0030EZ | 200 | 1.0×105 | 8.6×10-6 | |||||||
| 82‒0100EZ | 500 | 5.0×105 | 5000 | 3.7×10-5 | ||||||
| 112‒0160EZ | 1000 | 1.0×106 | 1.6×10-4 | |||||||
| 152‒0450EZ | 1500 | 1.0×106 | 3600 | 4.5×10-4 | ||||||

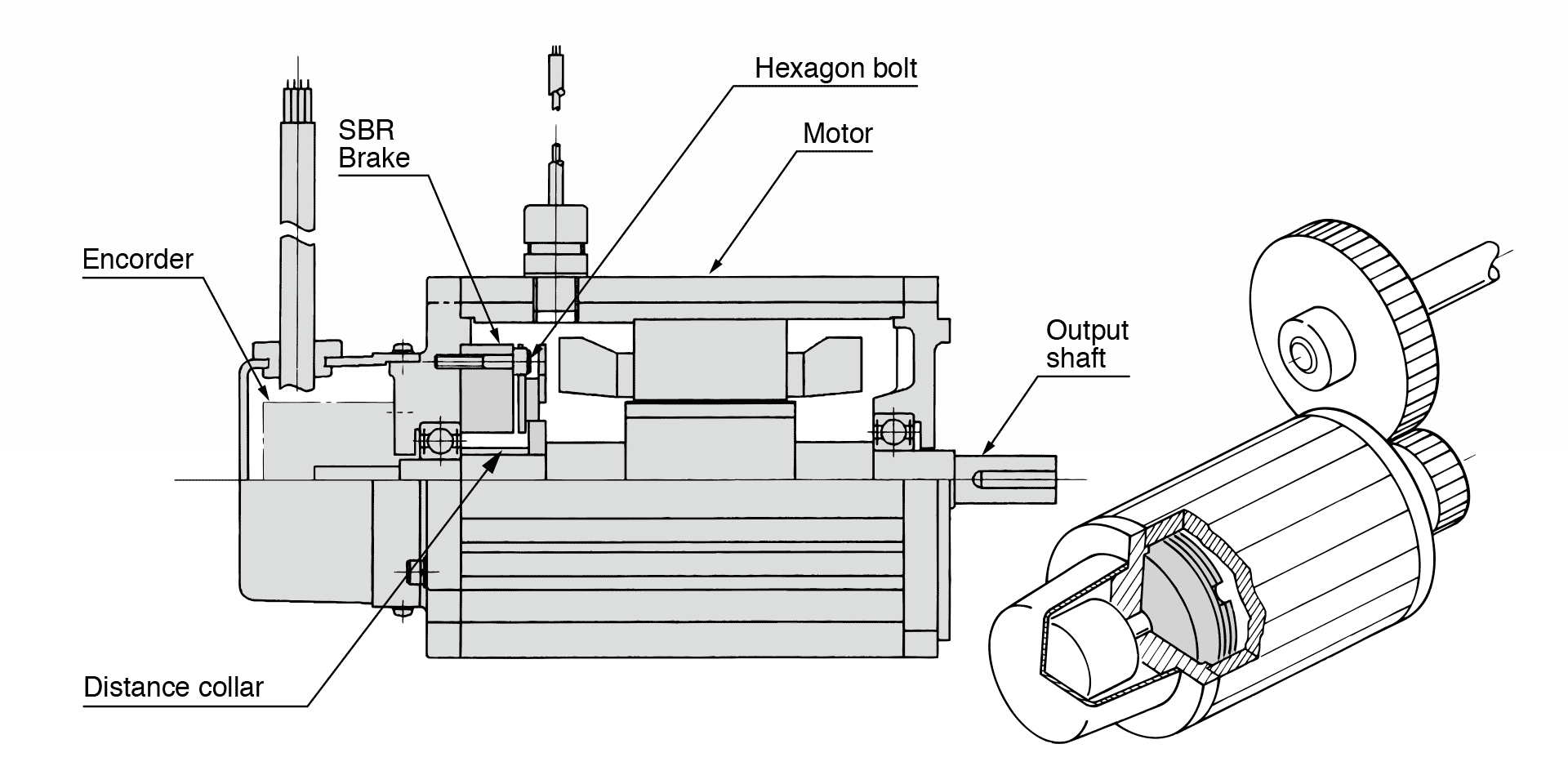

Installation Example
