Clutches and Brakes

ES-500-B2-24J

Clutch unit with V pulley

Build-to-order product

This is a reveesible unit which applied bevel gear and warner clutch on bracket. It is possible to immediate switching between normal rotation and reverse of an output shaft by switching clutches from one directional rotation of an input shaft.

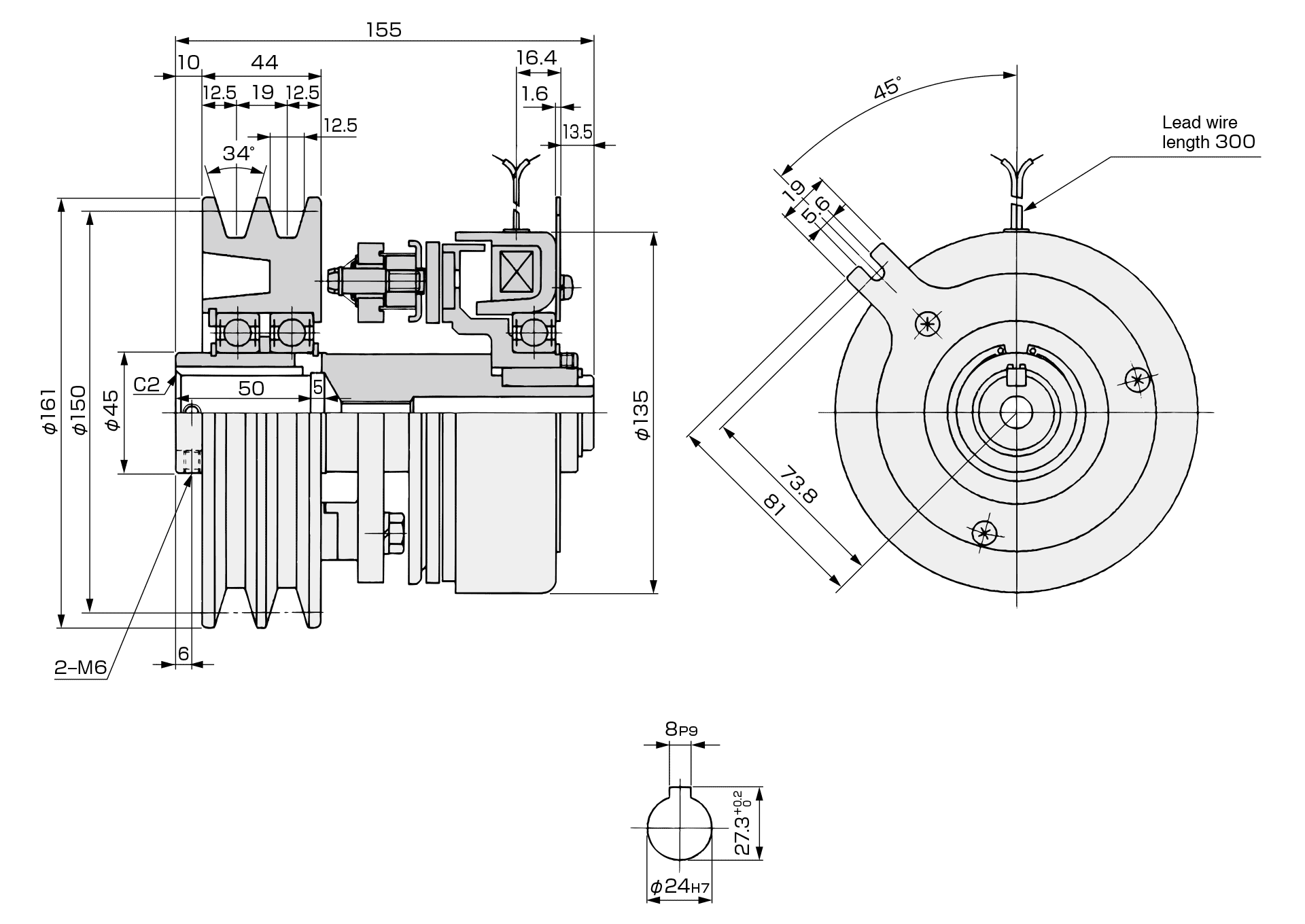

Model ES-500-B2-24J
Build-in clutch SF-500/BMP
V belt groove Type B×2
Pulley nominal diameter φ 150
Static friction torque Nm 70
Rated voltage DC-V 24
Power consumption W (at 75゚C) 23
Weight kg 8.5

Unit: mm

CAD

Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.

All information is subject to change without notice due to quality improvement or modification.
