VG Series Rubber-Spring Vibrators
This model combines a movable casting and a rubber spring with strong repulsive force, which vibrates by electromagnetic force caused by AC half-wave pulsating current. Suitable for medium-capacity hoppers, compact, lightweight, and easy to install. Moreover, it is an economical type with low power consumption. The rubber spring is highly durable and can be used at temperatures from -60°C to -15°C.
Type
VG-60, VG-80
VG-60
Specification
| Models | Voltage (V) |
Frequency (Hz) |
Vibrations (VPM) |
Impact force* (kg) |
Current (A) |
Voltage×curren (VA) |
Weight (kg) |
Applicable controller (model) |
|---|---|---|---|---|---|---|---|---|
| VG-60 | 200 | 50 | 50 | 2940 | 1.8 | 360 | 20 | C4-5B |
| 220 | 60 | 60 | ||||||
| VG-80 | 200 | 50 | 50 | 5880 | 3 | 600 | 35 | C4-5B |
| 220 | 60 | 60 |
Standard color: Munsell 2.5G7/2
Insulation class: B
Cable
VG-60/2PNCT, 2-core, 0.75mm2 (O.D.9.8mm), length0.35m
VG-80/2PNCT, 2-core, 1.25mm2 (O.D.10.6mm), length0.35m
Dimensions
Dimensions Table
Unit: mm
| Models | A | B | C | D | E | G |
|---|---|---|---|---|---|---|
| VG-60 | 205 | 183 | 260 | 160 | 14 | 20 |
| VG-80 | 250 | 195 | 320 | 195 | 18 | 19 |

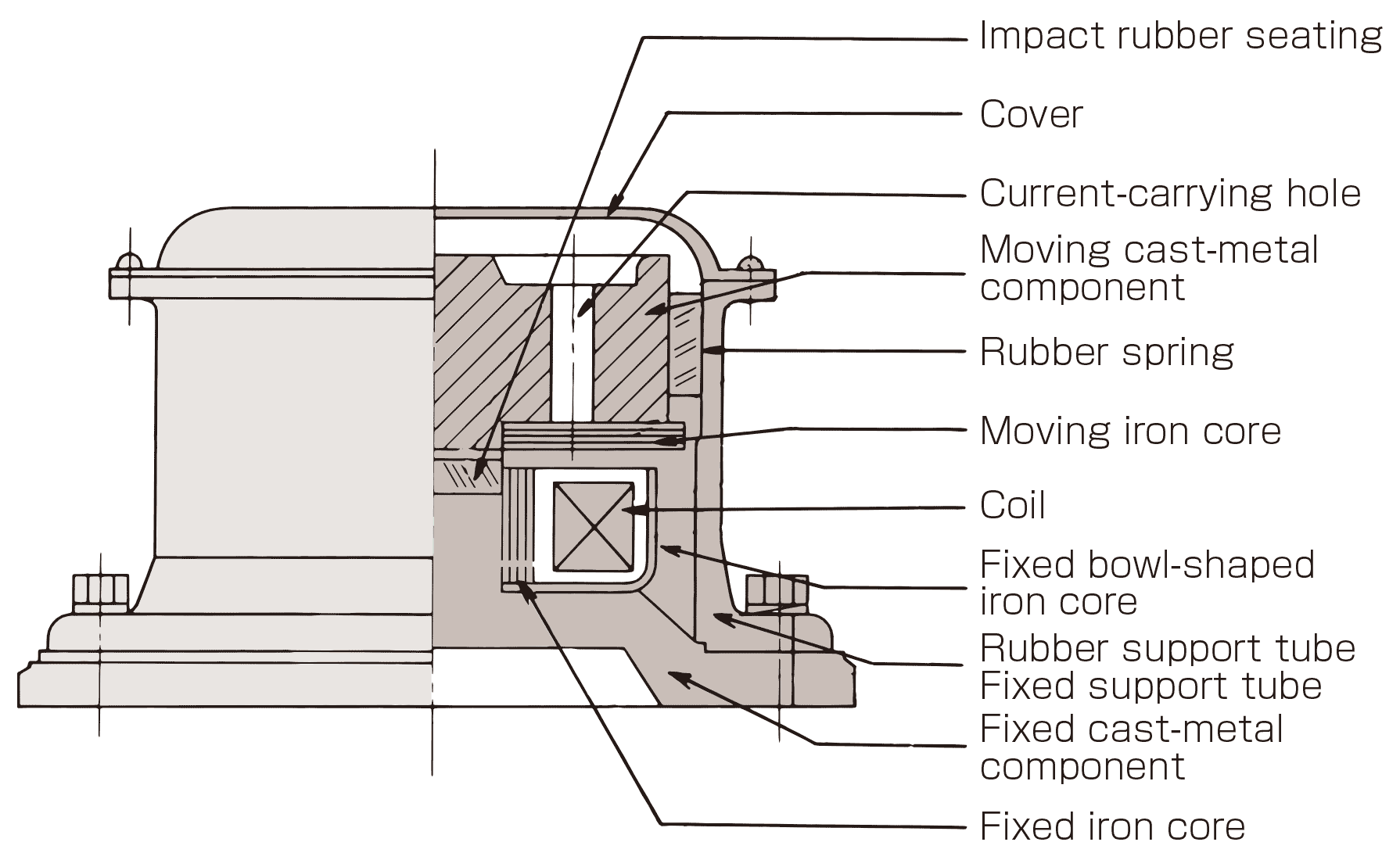

Structural Diagram
