RV Series Vibrating Motors

Abundant product lineup to meet variety of materials and use demands.

The RV series vibrating motors feature an unbalanced weight attached to the rotor shaft that generates an excitation force to produce powerful vibration. Designed for large-capacity hoppers, bins and chutes, these motors easily shift flow-resistant or sticky materials. Even materials that have proved hard to handle with other vibration equipment can be conveyed smoothly, with no clogging and arching problems. Ideal drive units for all types of vibrating equipment.

Example of Application

RV-16E  RV-42E  RV-64-1

Features

  1. Strong excitation force
    The use of an unbalanced weight directly connected to the rotor shaft gives a very powerful excitation force per single revolution. Ideal for use with large-capacity hoppers, and materials that resist flow.
  2. Compact and easy to install
    The body is notably compact for a high output motor, and takes up very little space. It features straightforward 4-bolt fixture.
  3. Adjustable excitation force
    Excitation force is adjusted simply by modifying the angle of the unbalanced weight on the rotor shaft. Desired force can be set by loosening the bolt and re-aligning the adjustable weight on the graduated reference plane.
  4. Low noise
    Despite powerful performance, little noise is generated to disrupt the working environment.
  5. Wide product line-up
    The RV series includes 2, 4, 6, and 8 pole motors, each with a series of models according to excitation force. This line-up assures the ideal match to suit the material and task. Additionally a reinforced pressure-tight model is available for safe use in risky locations.
  6. Ideal drive units for all types of vibrating equipment
    Broad range of applications as drive units for all types of vibrators, feeders, screens and conveyors.

B Type

Type

RV-758B12

Structural diagram

E Type

Type

RV-72E

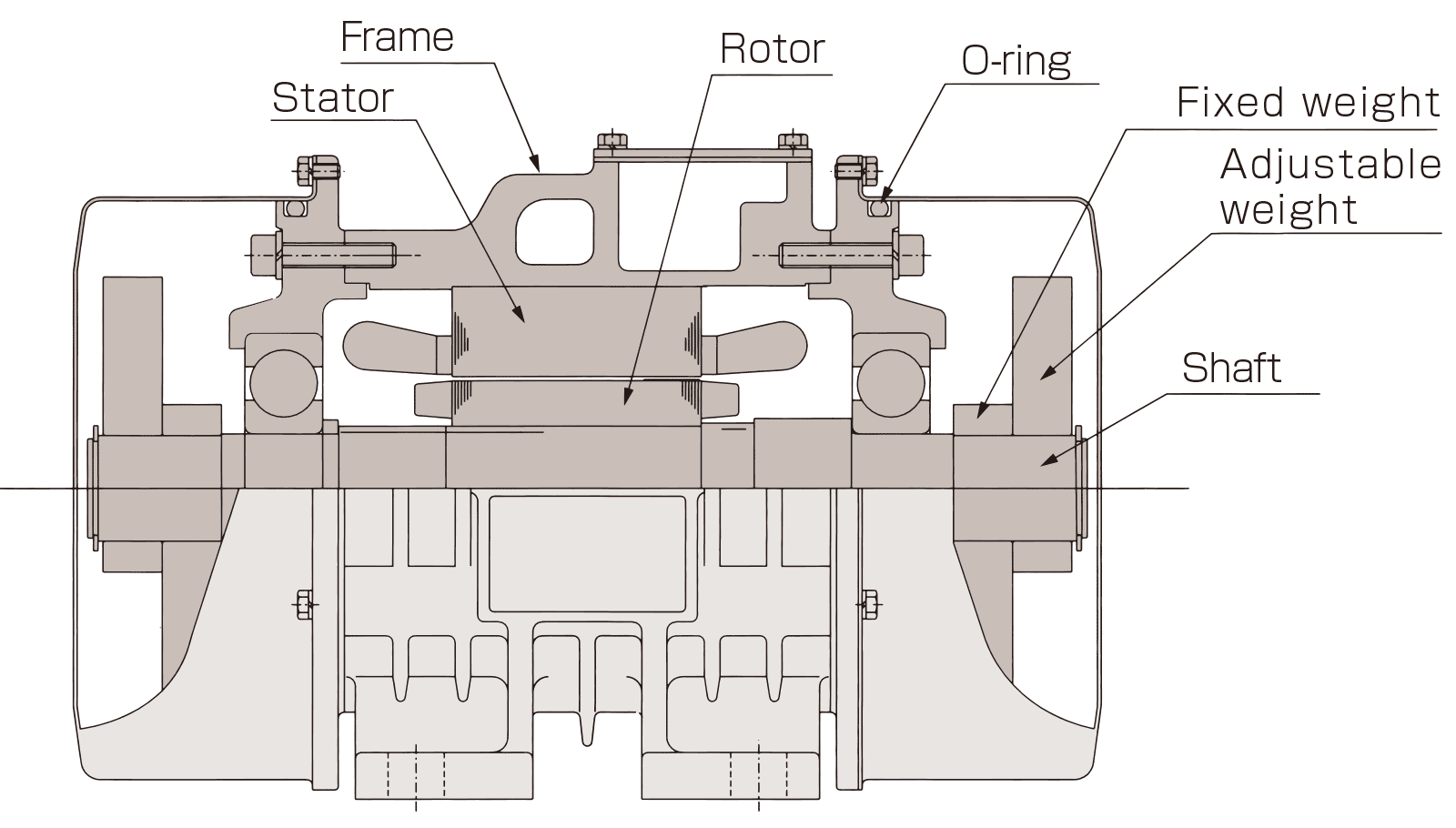

Structural diagram

2-pole

Type

RV-042, RV-072D, RV-12E, RV-22D, RV-42E, RV-72E

Specifications

2-pole(Continuous rating, 3-phase, 200/220V, 400/440V, 50/60Hz)
Model Excitation force (kN) Output
(kW)
Frequency(VPM) Current
(A)
Weight
(kg)
200V/50Hz
400V/50Hz
220V/60Hz
440V/60Hz
200V/
50Hz
220V/
60Hz
400V/
50Hz
440V/
60Hz
RV-042 0.49 0.04 3000 3600 0.25 0.23 - - 5.0
RV-072D 0.981 0.075 3000 3600 0.44 0.40 0.22 0.2 7
RV-12E 1.96 0.15 3000 3600 0.75 0.67 0.38 0.34 11
RV-22D 3.43 0.25 3000 3600 1.1 1.04 0.55 0.52 14
RV-42E 5.88 0.4 3000 3600 1.76 1.6 0.88 0.8 24
RV-72E 9.8 0.75 3000 3600 3.52 3.2 1.8 1.6 33

The standard paint color is Munsell 7.5BG6/1.5.
Insulation class: B
Special specifications apply for outdoor operation.
The RV-042 is manufactured only to 200/220V specifications.
Cable
2PNCT, 4-core, 0.75mm2 (O.D. 11mm), length 2m (green ground wire).

Outer Dimensions

2-Pole  RV-042

Unit: mm

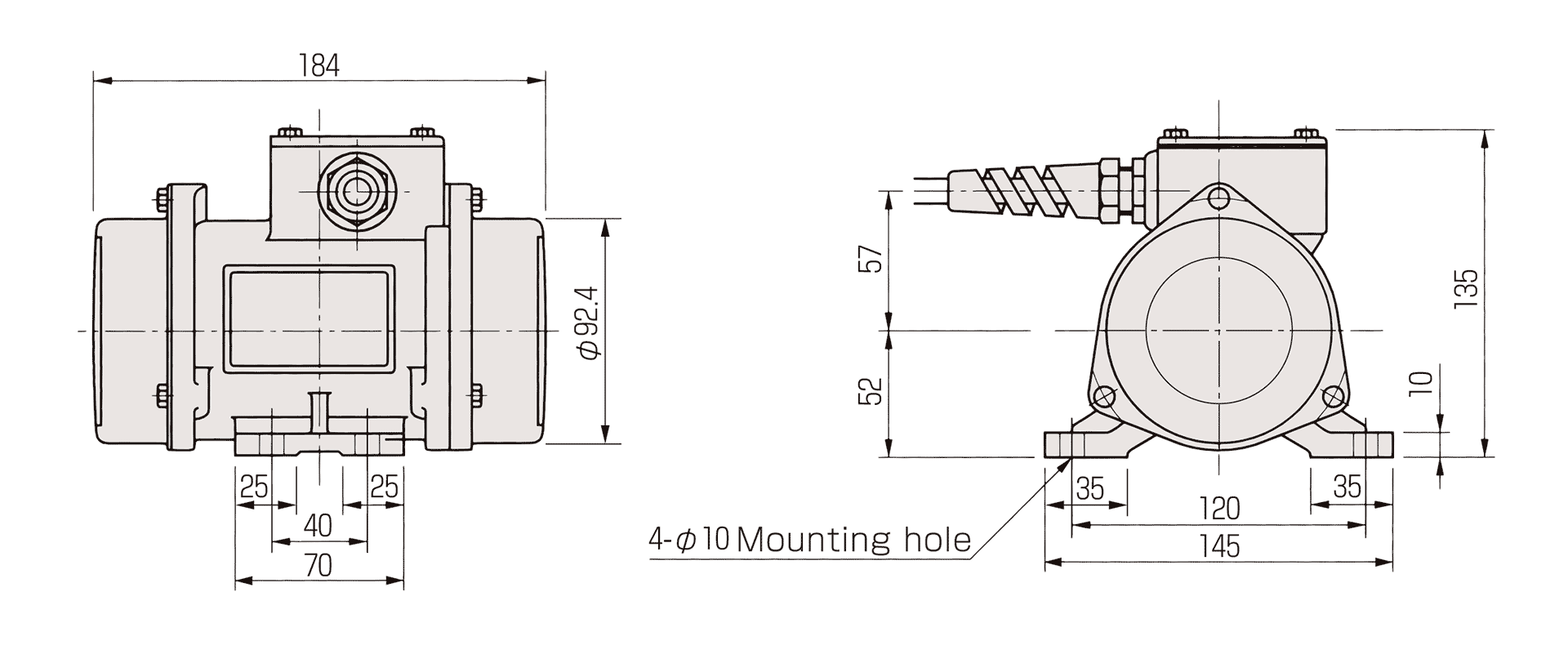

2-Pole RV-072D

Unit: mm

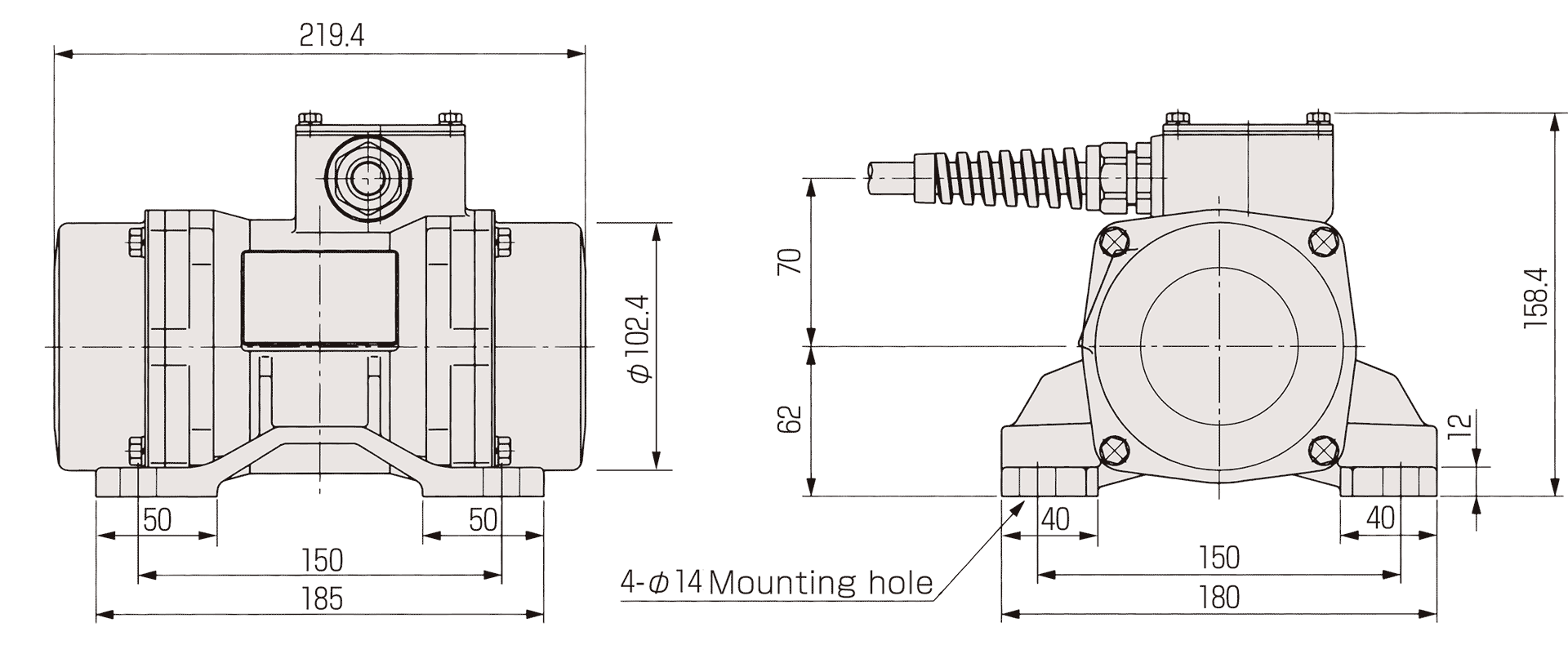

2-Pole RV-12E

Unit: mm

2-Pole RV-22D

Unit: mm

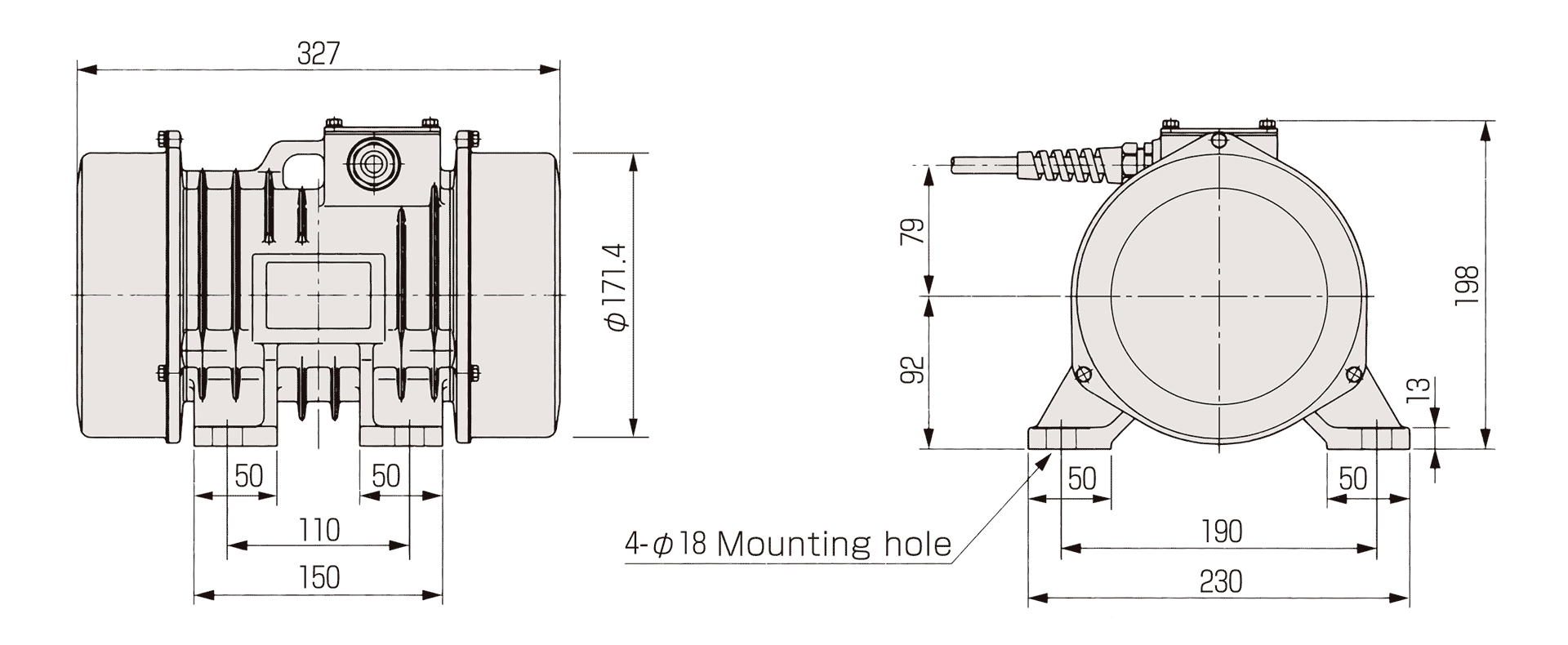

2-Pole RV-42E

Unit: mm

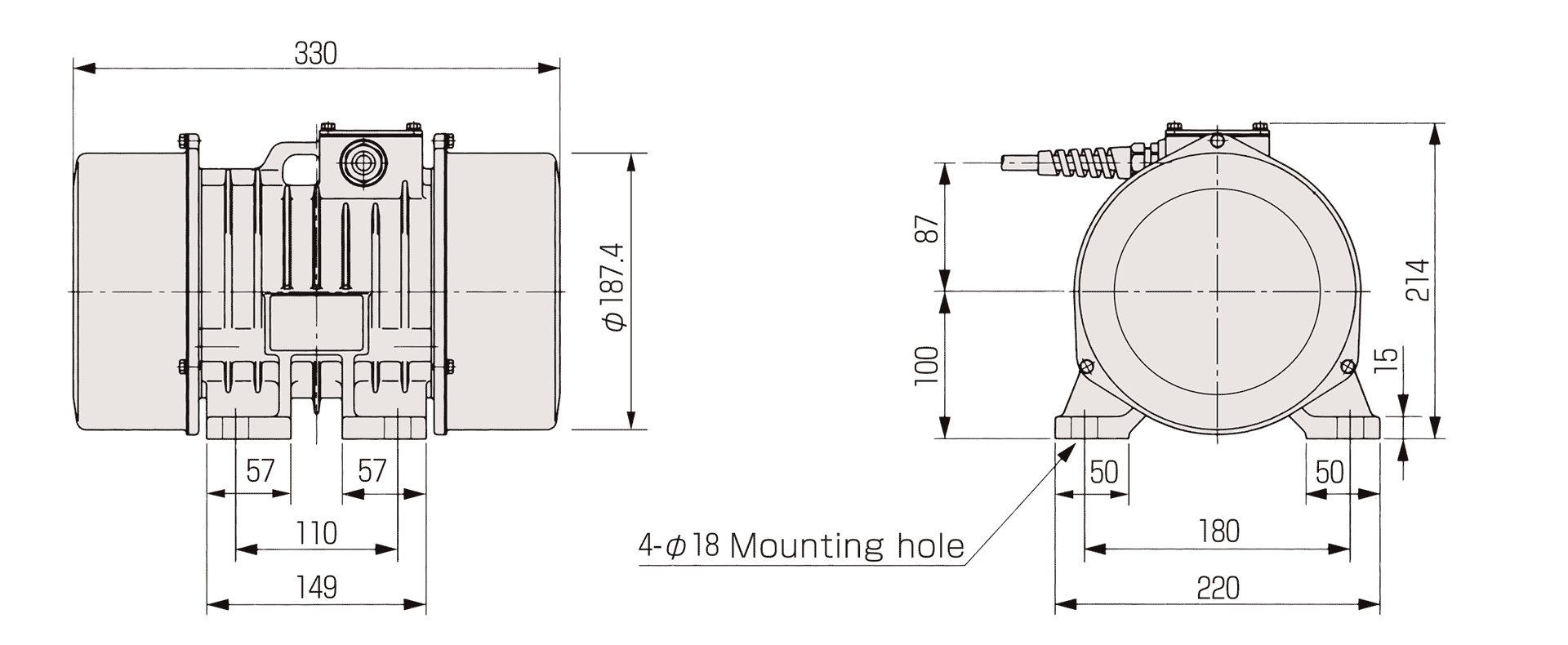

2Pole RV-72E

Unit: mm

4-Pole

Type

RV-064, RV-14D1, RV-24D1, RV-44D1, RV-64-1, RV-74D1, RV-154B3, RV-244B3

Specifications

4-Pole (Continuous rating, 3-phase, 200/220V, 400/440V, 50/60Hz)
Model Excitation force
(kN)
Output
(kW)
Frequency(VPM) Current
(A)
Weight
(kg)
200V/50Hz
400V/50Hz
220V/60Hz
440V/60Hz
200V/
50Hz
220V/
60Hz
400V/
50Hz
440V/
60Hz
RV-064 1.47 0.065 1500 1800 0.58 0.55 - - 12
RV-14D1 2.94 0.12 1500 1800 0.84 0.74 0.45 0.41 18
RV-24D1 5.88 0.25 1500 1800 1.6 1.4 0.8 0.7 26.5
RV-44D1 8.83 0.4 1500 1800 2.1 1.9 1.04 0.90 36
RV-64-1 11.8 0.6 1500 1800 3.06 2.75 1.53 1.38 45
RV-74D1 16.67 0.75 1500 1800 3.6 3.2 1.8 1.6 66
RV-154B3 31.38 1.5 1500 1800 6.6 6.0 3.3 3 130
RV-224B3 49.03 2.2 1500 1800 9.6 8.8 4.8 4.4 180

: The standard paint color is Munsel l2.5G7/2
Munsell 7.5BG6/1.5.
RV-064は200/220Vのみ製作
RV-154B3、224B3 are dual voltage, 200V or 400V.
Cable
RV-064~74D1/2PNCT, 4-core, 0.75mm(O.D. 11mm), length 2m (green ground wire)
RV-154B3/2PNCT, 4-core, 2.0mm(O.D. 12.5mm), length 2m (green ground wire)
RV-224B3/2PNCT, 4-core, 3.5mm(O.D. 14.5mm), length 2m (green ground wire)

Outer Dimensions

4-Pole RV-064

Unit: mm

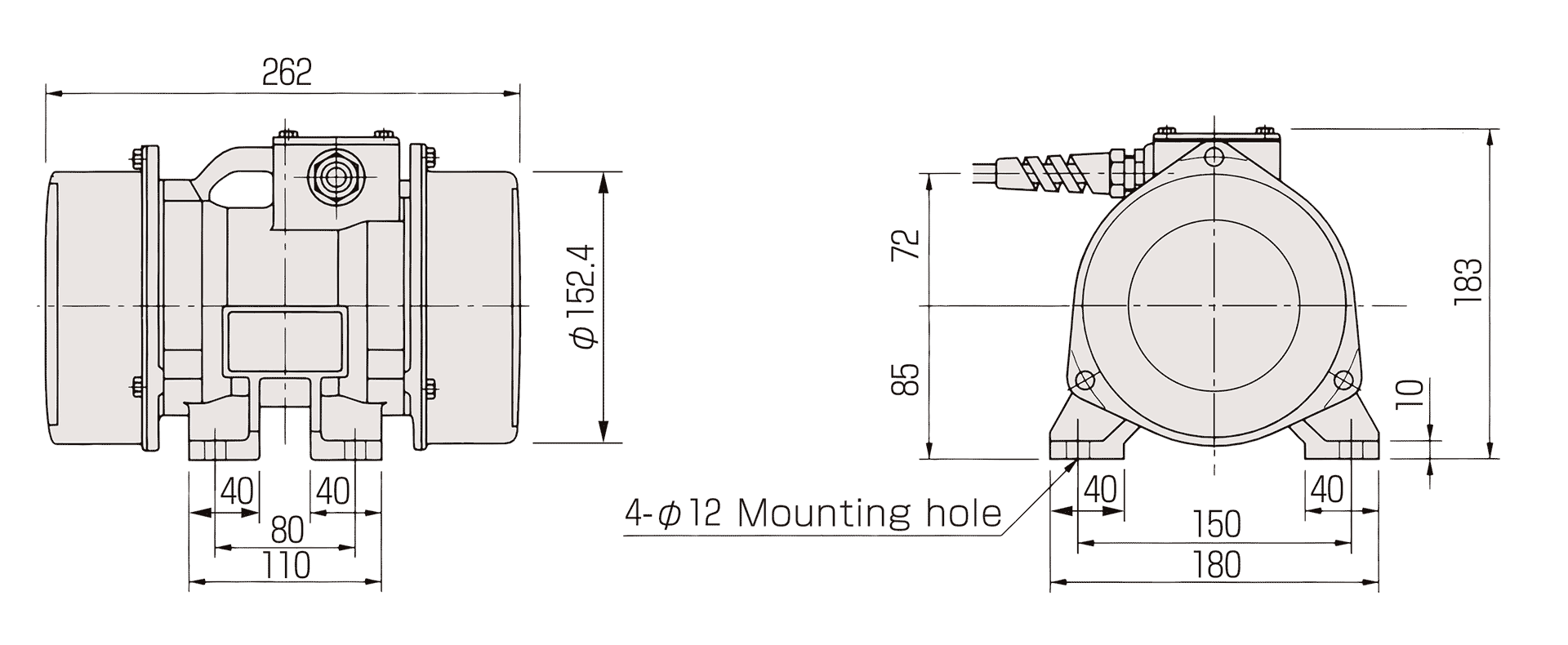

4-Pole RV-14D1

Unit: mm

4-Pole RV-24D1

Unit: mm

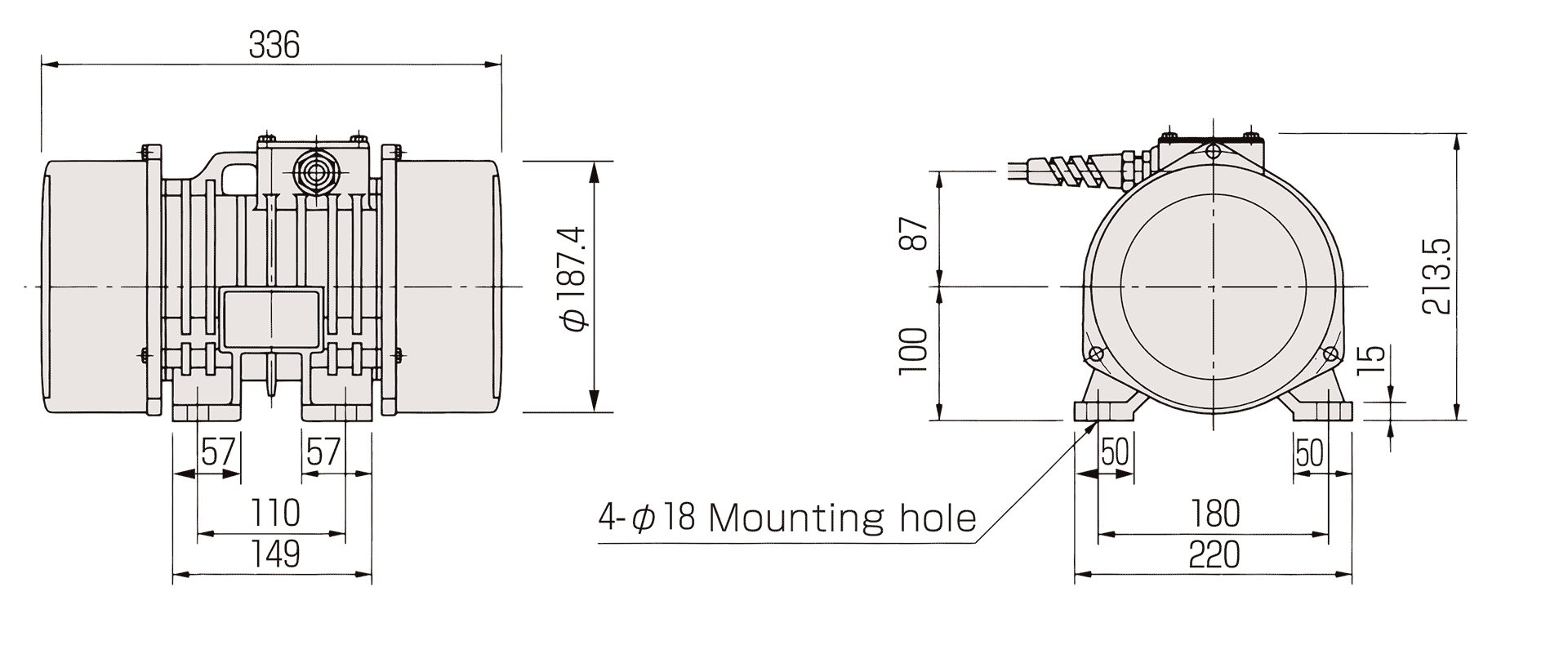

4-Pole RV-44D1

Unit: mm

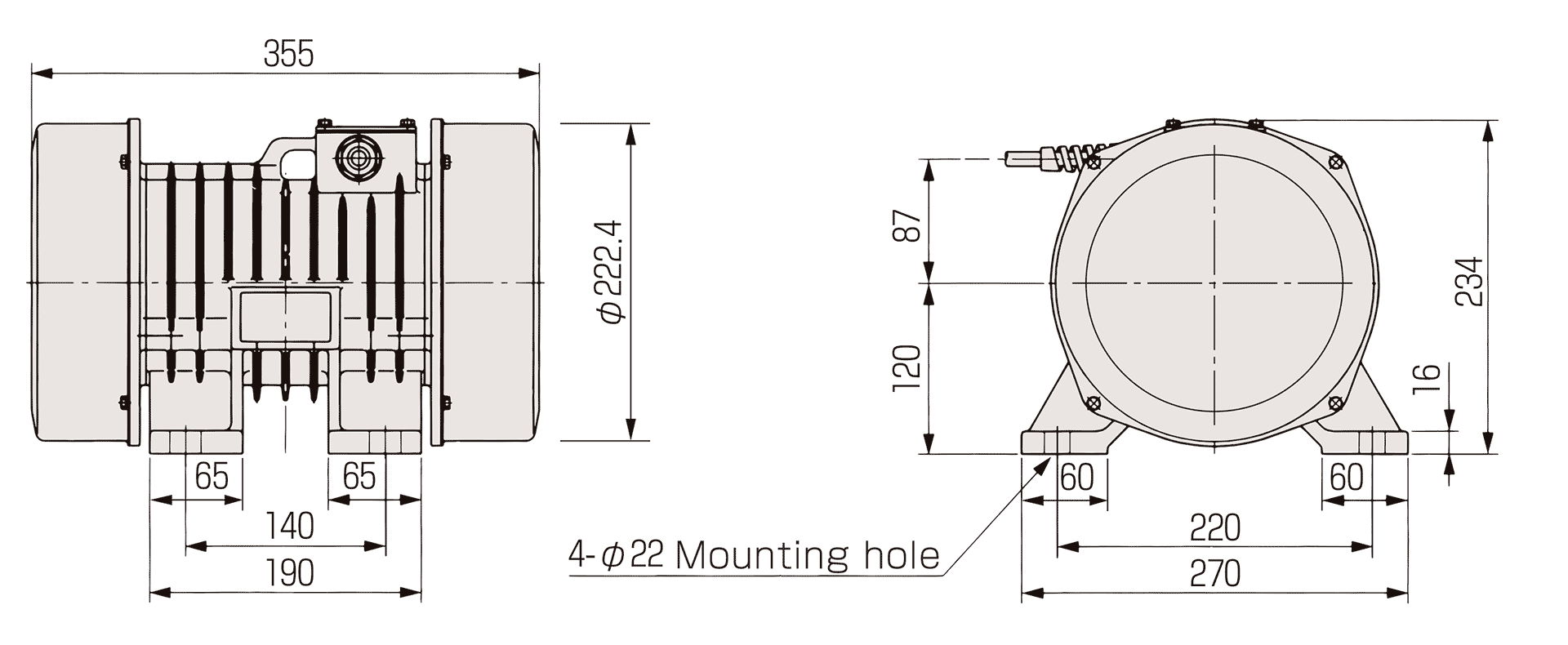

4-Pole RV-64-1

Unit: mm

4-Pole RV-74D1

Unit: mm

4-Pole RV-154B3

Unit: mm

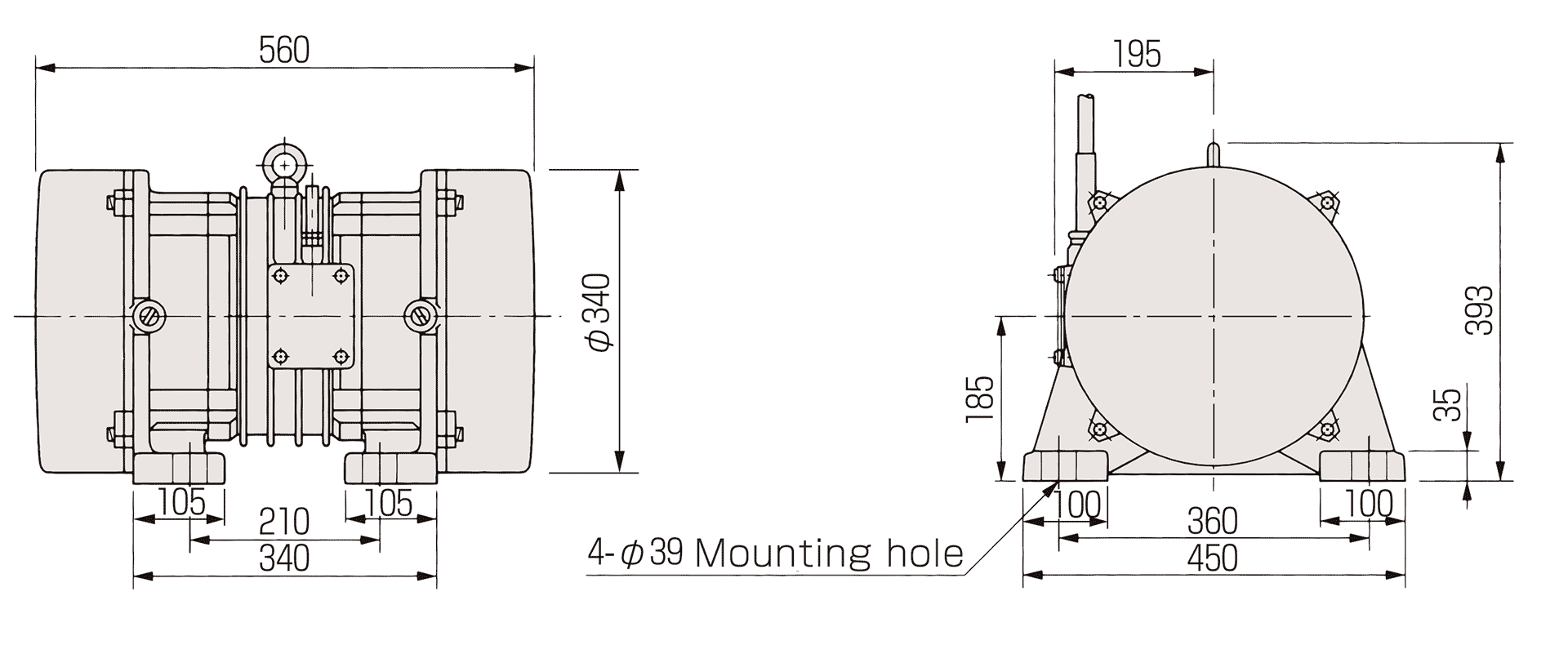

4-Pole RV-224B3

Unit: mm

6-Pole

Type

RV-16E1, RV-36E1, RV-66E1, RV-126-1, RV-186-1

Specifications

6-Pole (Continuous rating, 3-phase, 200/220V, 400/440V, 50/60Hz)
Model Excitation force (kN) Output (kW) Frequency(VPM) Current(A) Weight
(kg)
200V/50Hz
400V/50Hz
220V/60Hz
440V/60Hz
200V/
50Hz
220V/
60Hz
400V/
50Hz
440V/
60Hz
RV-16E1 2.94 0.16 1000 1200 1.1 1.0 0.56 0.5 28
RV-36E1 5.88 0.32 1000 1200 2.14 1.94 1.07 0.97 41
RV-66E1 11.8 0.6 1000 1200

4.1

3.68 2.05 1.84 68
RV-126-1 21.56 1.2 1000 1200 7.2 6.4 3.6 3.2 116
RV-186-1 33.32 1.8 1000 1200 10.0 9.0 5 4.5

166

The standard paint color is Munsell 2.5G7/2
Insulation class: B
RV-126, 186 are dual voltage, 200V or 400V.
Cable
RV-16E1/2PNCT,  4-core, 0.75mm(O.D.11mm),  length 2m (green ground wire))
RV-36E1~RV-126-1/2PNCT,  4-core,  1.25mm(O.D.11.5mm),  length 2m (green ground wire))
RV-186-1/2PNCT,  4-core,  2.0mm(O.D.12.5mm),  length 2m (green ground wire))

Outer Dimensions

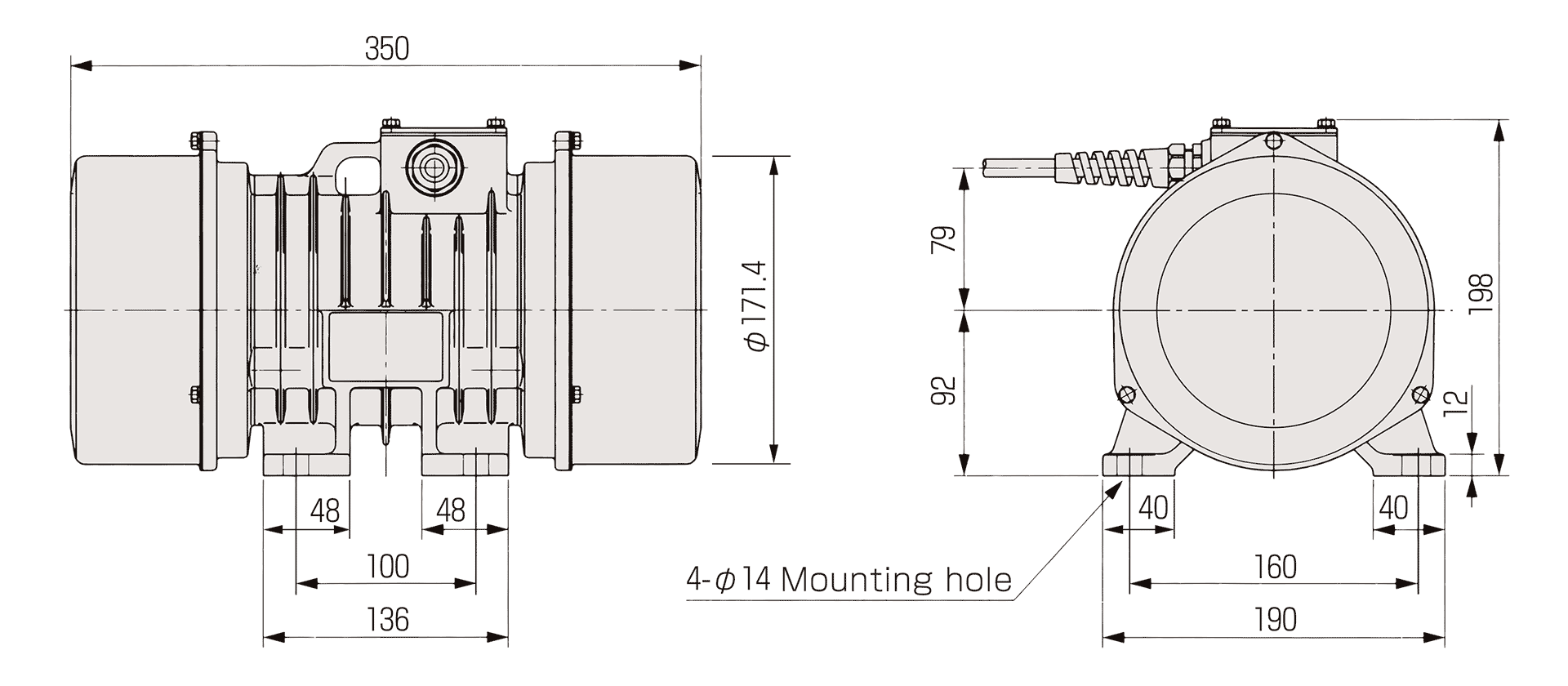

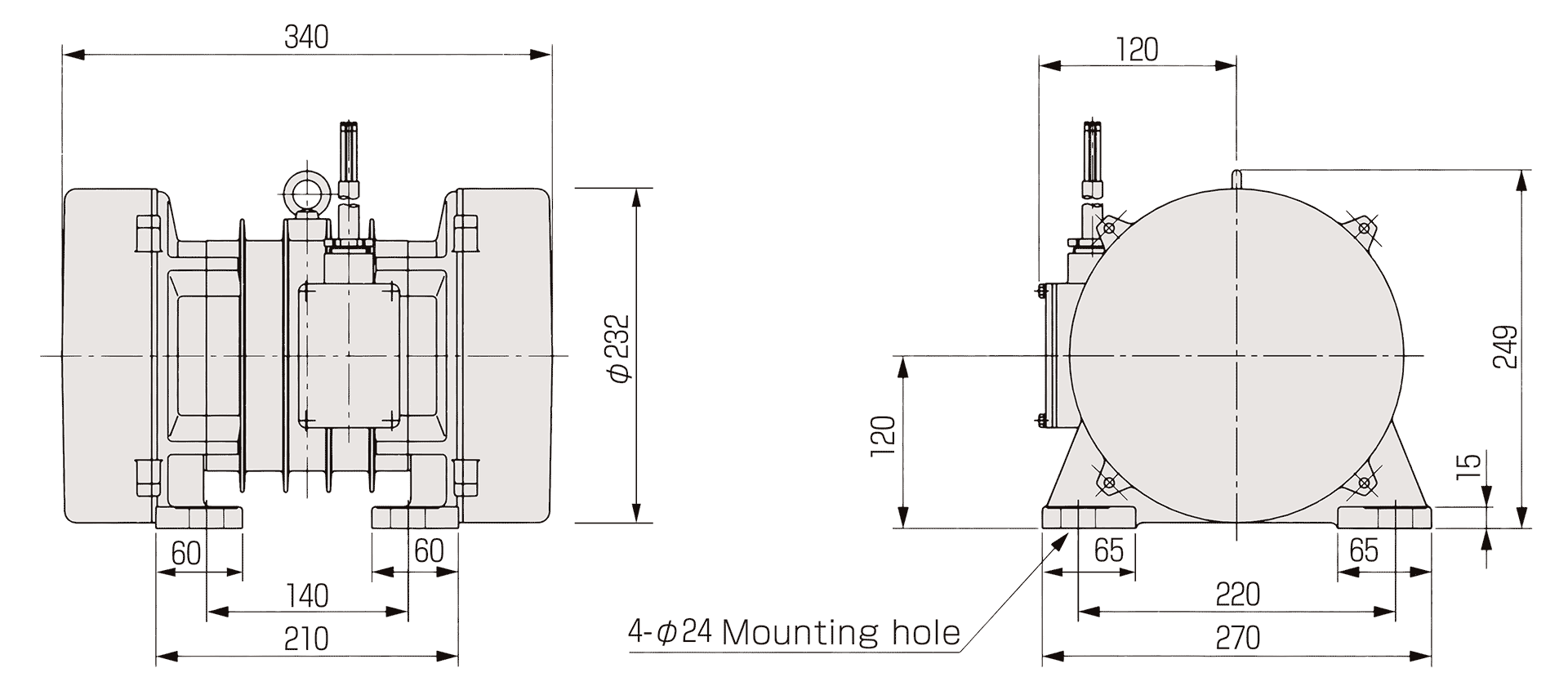

6-Pole RV-16E1

Unit: mm

6-Pole RV-36E1

Unit: mm

6-Pole RV-66E1

Unit: mm

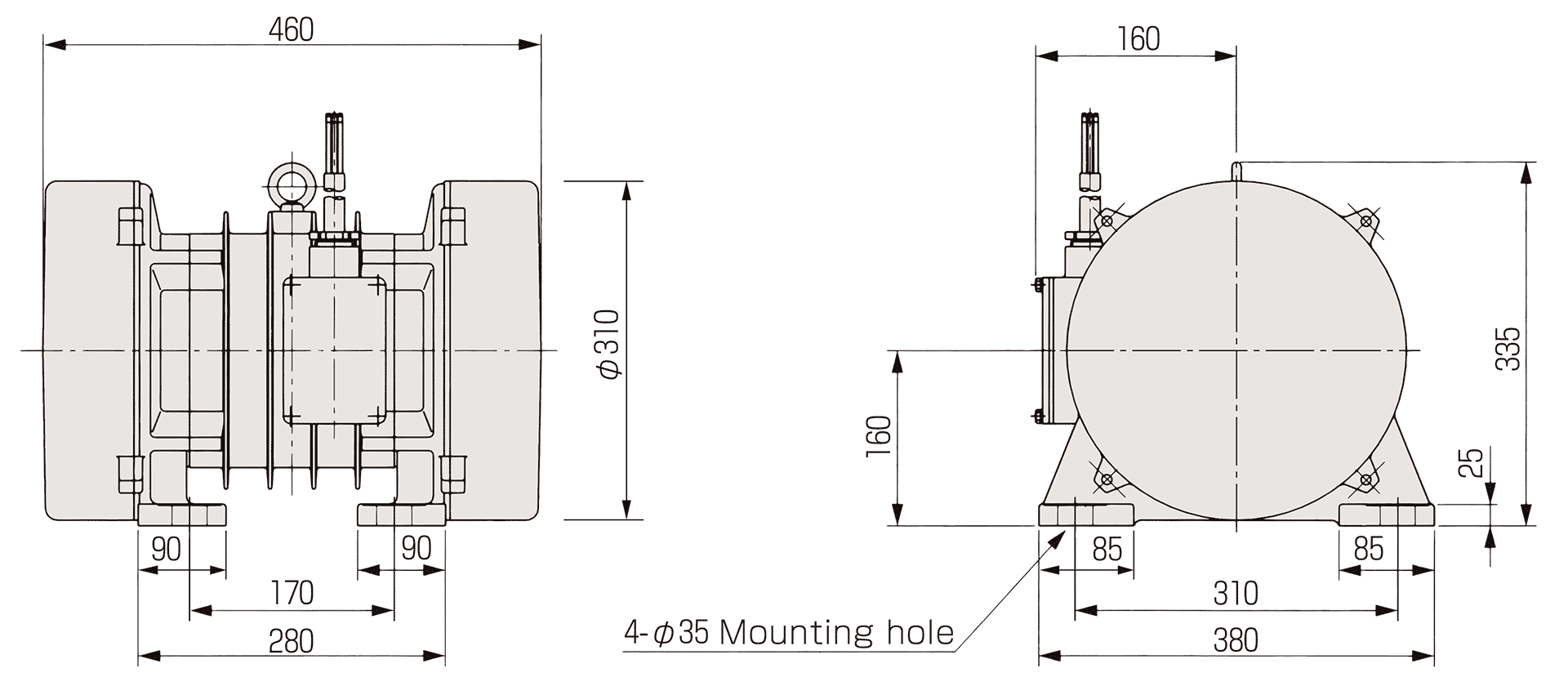

6-Pole RV-126-1

Unit: mm

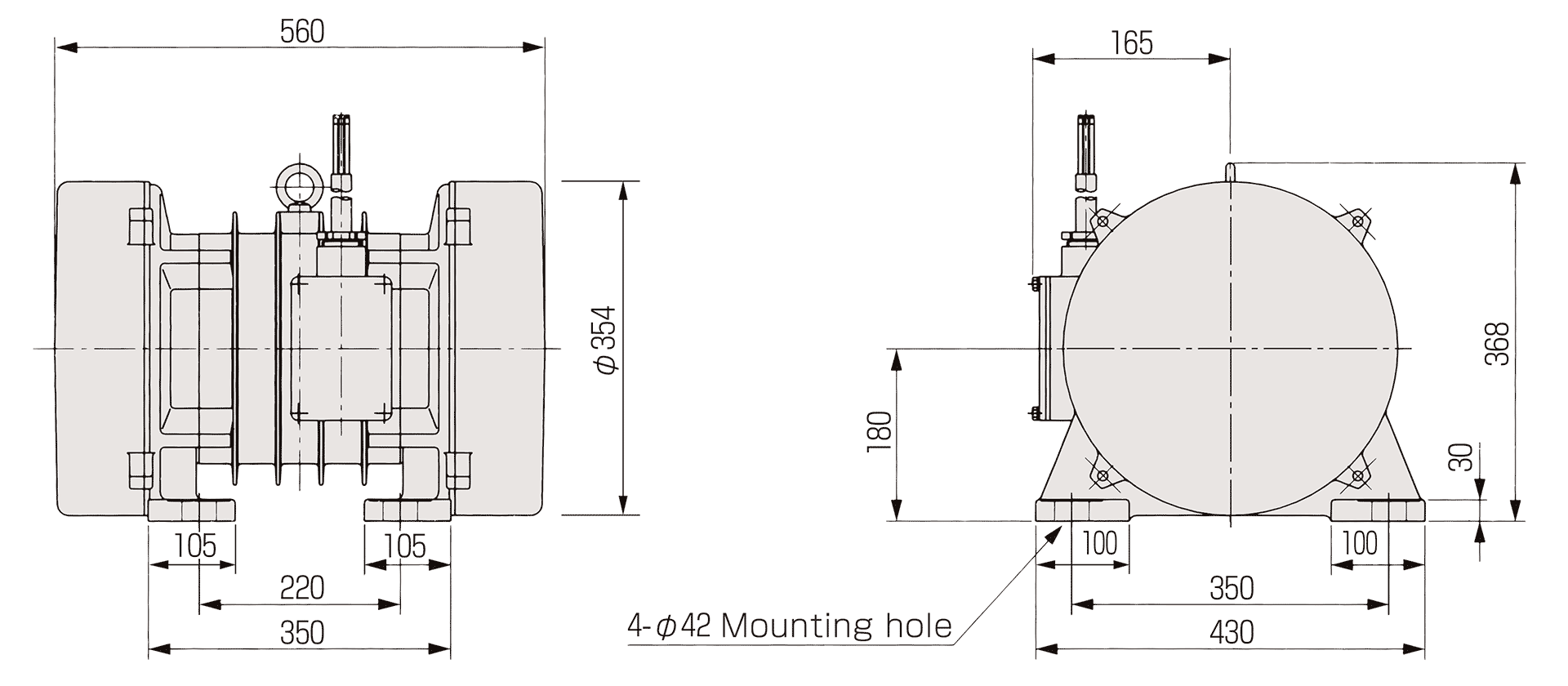

6-Pole RV-186-1

Unit: mm

8-Pole

Type

RV-78B3, RV-158B13, RV-228B12, RV-378B12, RV-558B12, RV-758B12

Specifications

8-Pole (Continuous rating, 3-phase, 200/220V, 400/440V, 50/60Hz)
Model Excitation force (kN) Output (kW) Frequency(VPM) Current(A) Weight
(kg)
200V/50Hz
400V/50Hz
220V/60Hz
440V/60Hz
200V/
50Hz
220V/
60Hz
400V/
50Hz
440V/
60Hz
RV-78B3 9.81 0.75 750 900 4.4 4.0 2.2 2 104
RV-158B13 19.61

1.5

750 900 9.0 8.0 4.5 4 160
RV-228B12 29.4 2.2 750 900 8.0 7.4 4 3.7 230
RV-378B12 49 3.7 750 900 13.8 12.6 6.9 6.3 315
RV-558B12 73.5 5.5 750 900 15.0 14.0 7.5 7 535
RV-758B12 98 7.5 750 900 21.0 19.0 10.5 9.5 660

The standard paint color is Munsell 2.5G7/2
Insulation class B(RV-78B3、RV-158B13)/ F(RV-228B12、RV-378B12、RV-558B12、RV-758B12)
All models are dual voltage, 200V or 400V.
Cable
RV-78B3: 2PNCT, 4-core, 1.25mm(O.D. 11.5mm), length 2m (green ground wire)
RV-158B13: 2PNCT, 4-core, 2.0mm(O.D. 12.5mm), length 2m (green ground wire)
RV-228B12, 378B12: 2PNCT, 4-core, 3.5mm(O.D. 15.8mm), length 3m (green ground wire)
RV-558B12, 758B12: 2PNCT, 4-core, 5.5mm(O.D. 17.4mm), length 3m (green ground wire)

Outer Dimensions

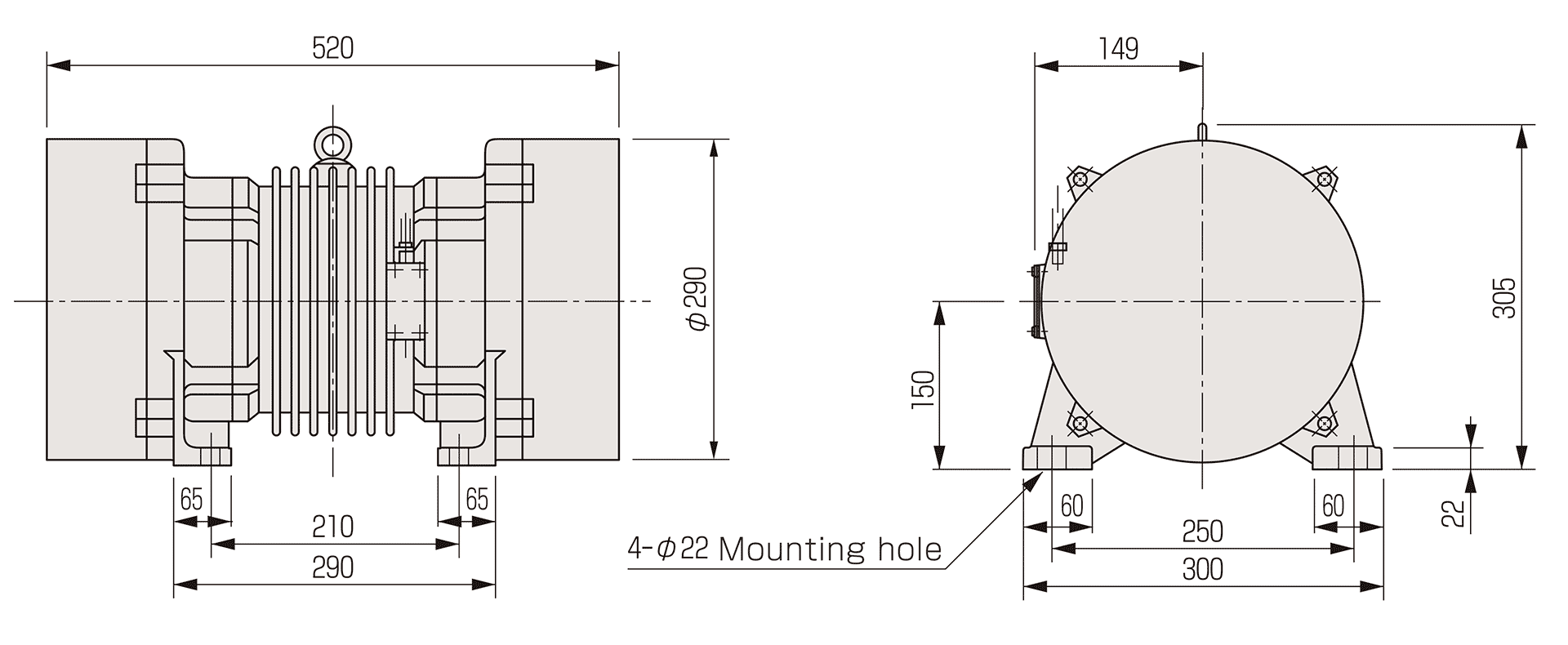

8-Pole RV-78B3

Unit: mm

8-Pole RV-158B13

Unit: mm

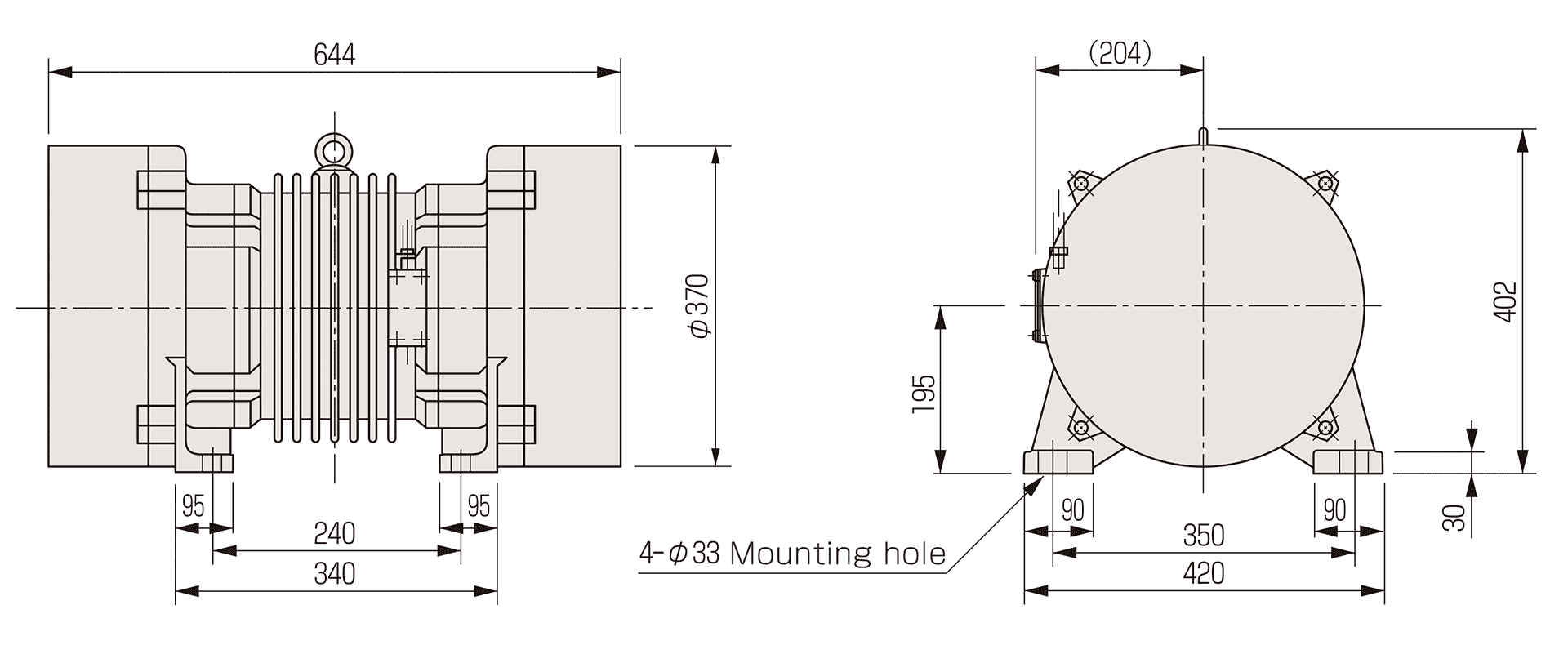

8-Pole RV-228B12

Unit: mm

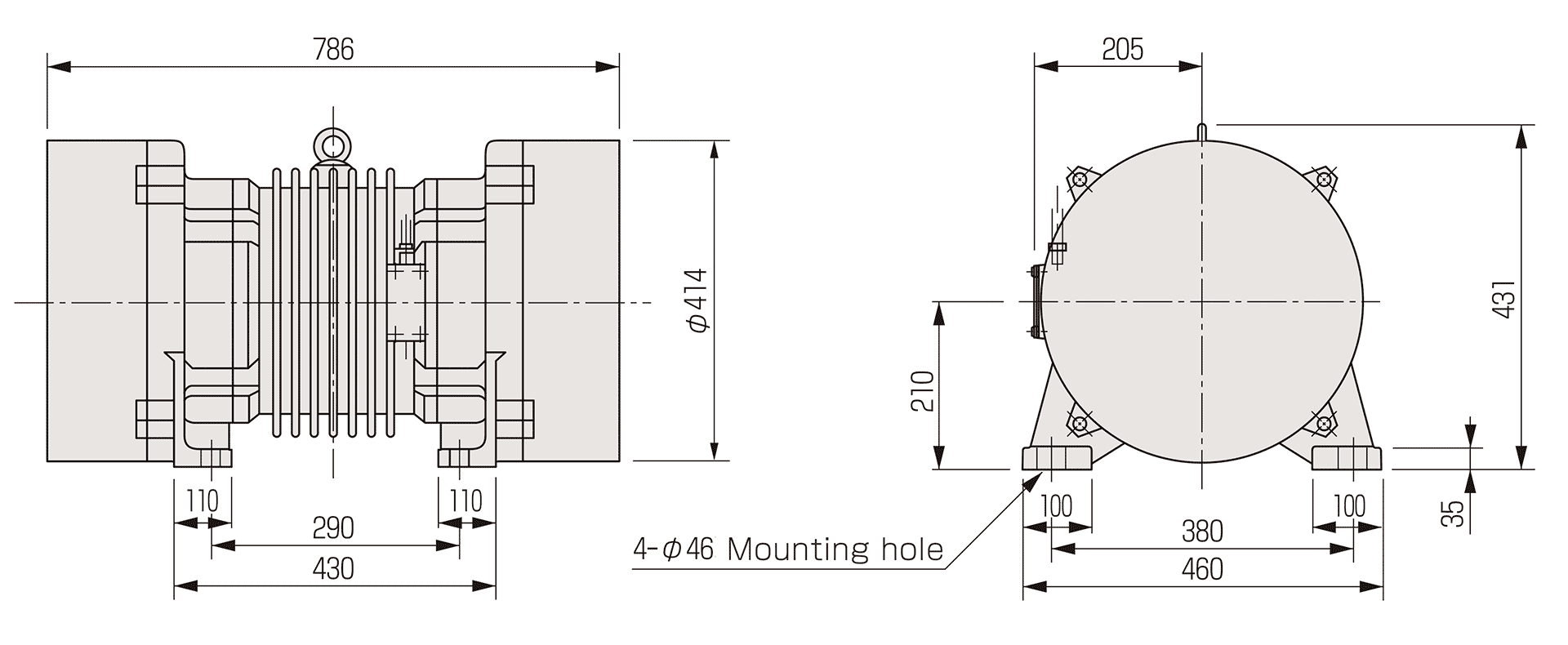

8-Pole RV-378B12

Unit: mm

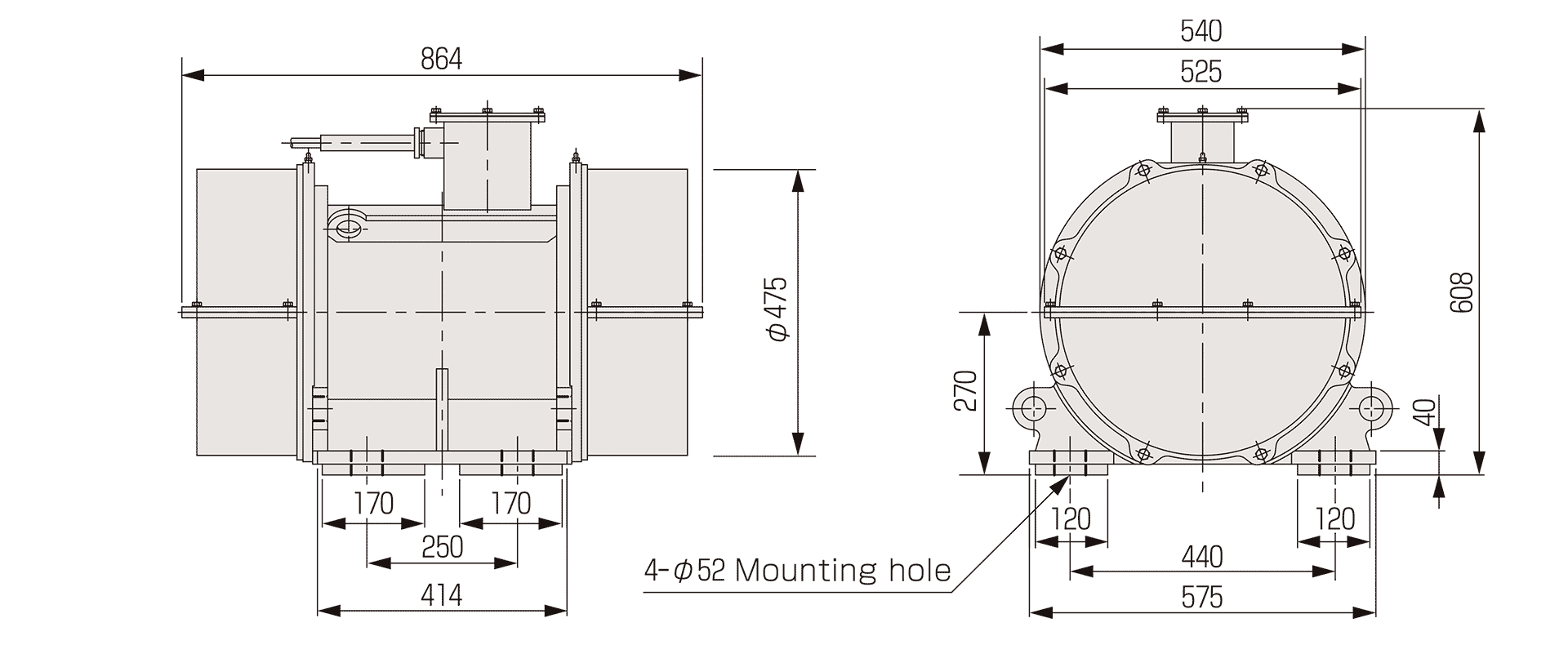

8-Pole RV-558B12

Unit: mm

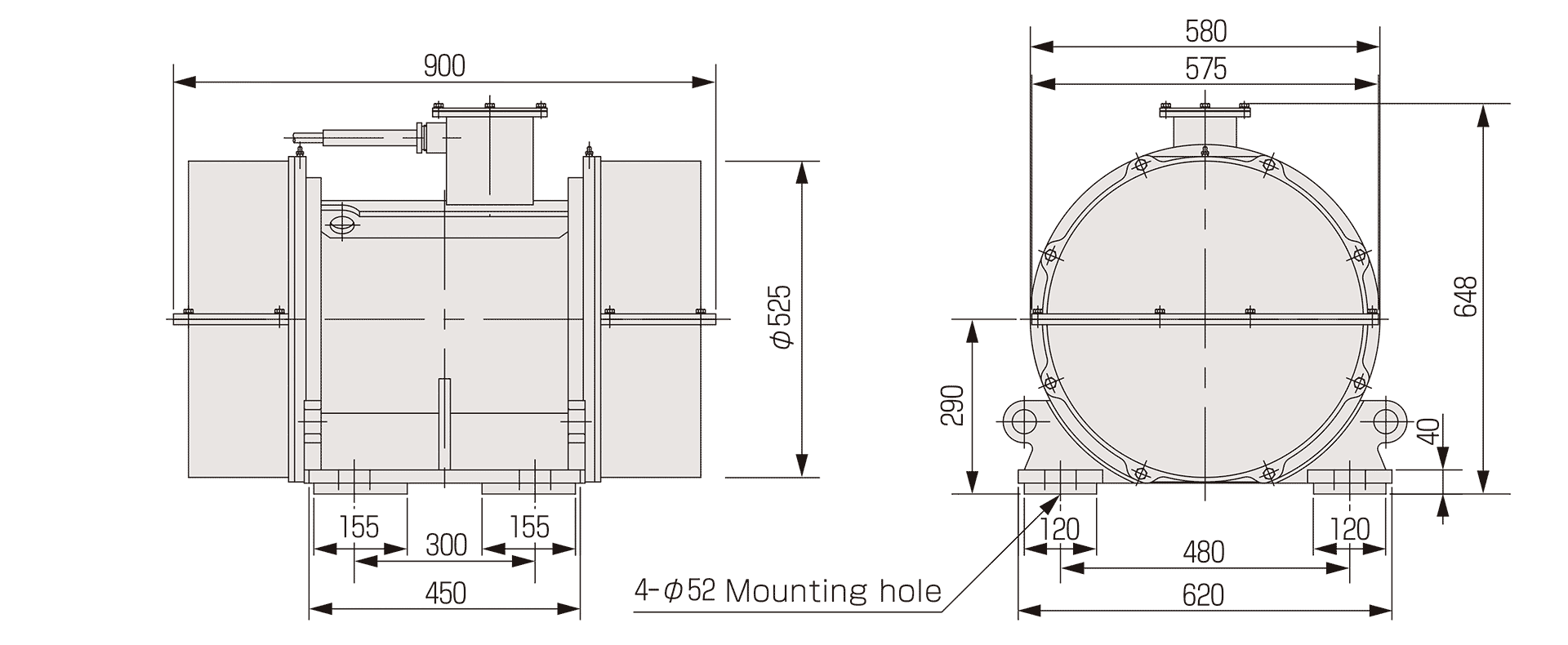

8-Pole RV-758B12

Unit: mm

Application Example

Unclogging

Easy to install with a vibrator. Just turn on the switch to unclog and restore smooth flow.

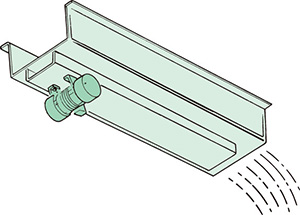

RV type for large capacity chute

RV type for large capacity hopper

Filling the container

Instead of manual labor, the vibrator shakes the container. Powerful for filling bulky materials, molding, and de-shaping.

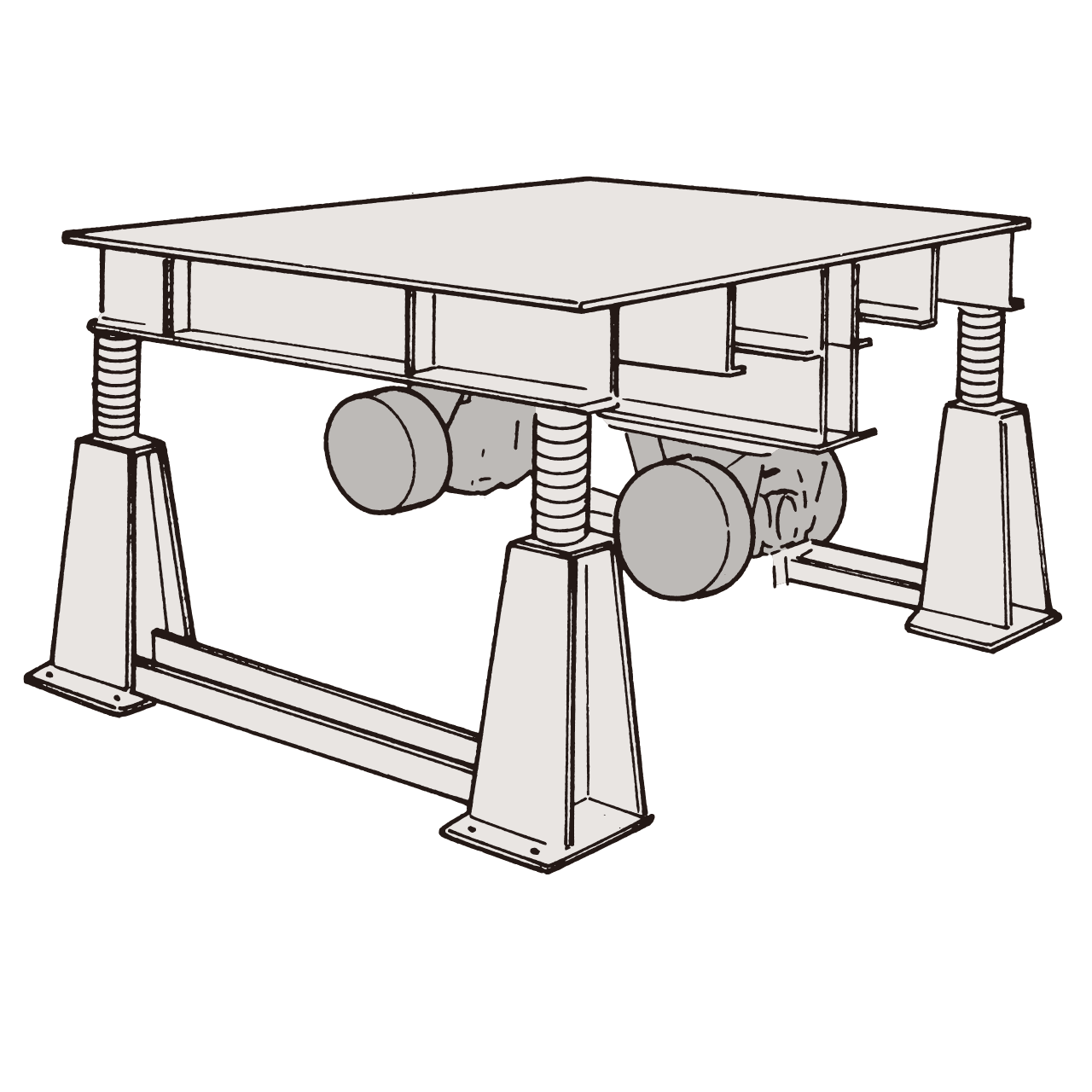

Filling and molding of large shapes
