HME/HSE Series
Realizing high frequency driving and low amplitude and suitable for ultra small electronic parts handling.
This mini parts feeder is able to be operated with high frequency by using exclusive use controller. Realizing precise positioning detecting and sorting by sensing slight gap of shape and weight. This is suitable for high speed processing of electronic parts which is continuously becoming smaller and smaller.

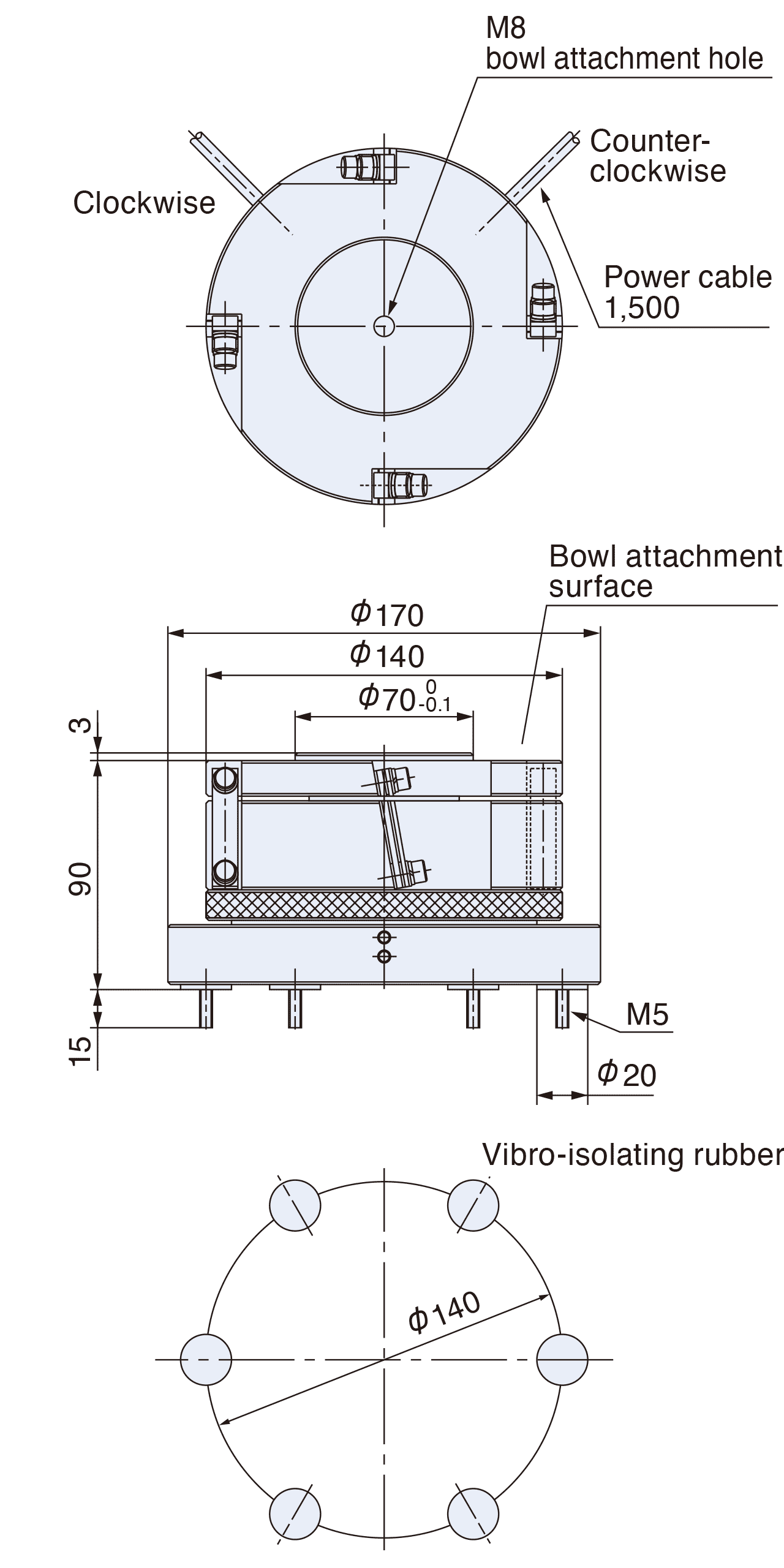

Dimensions

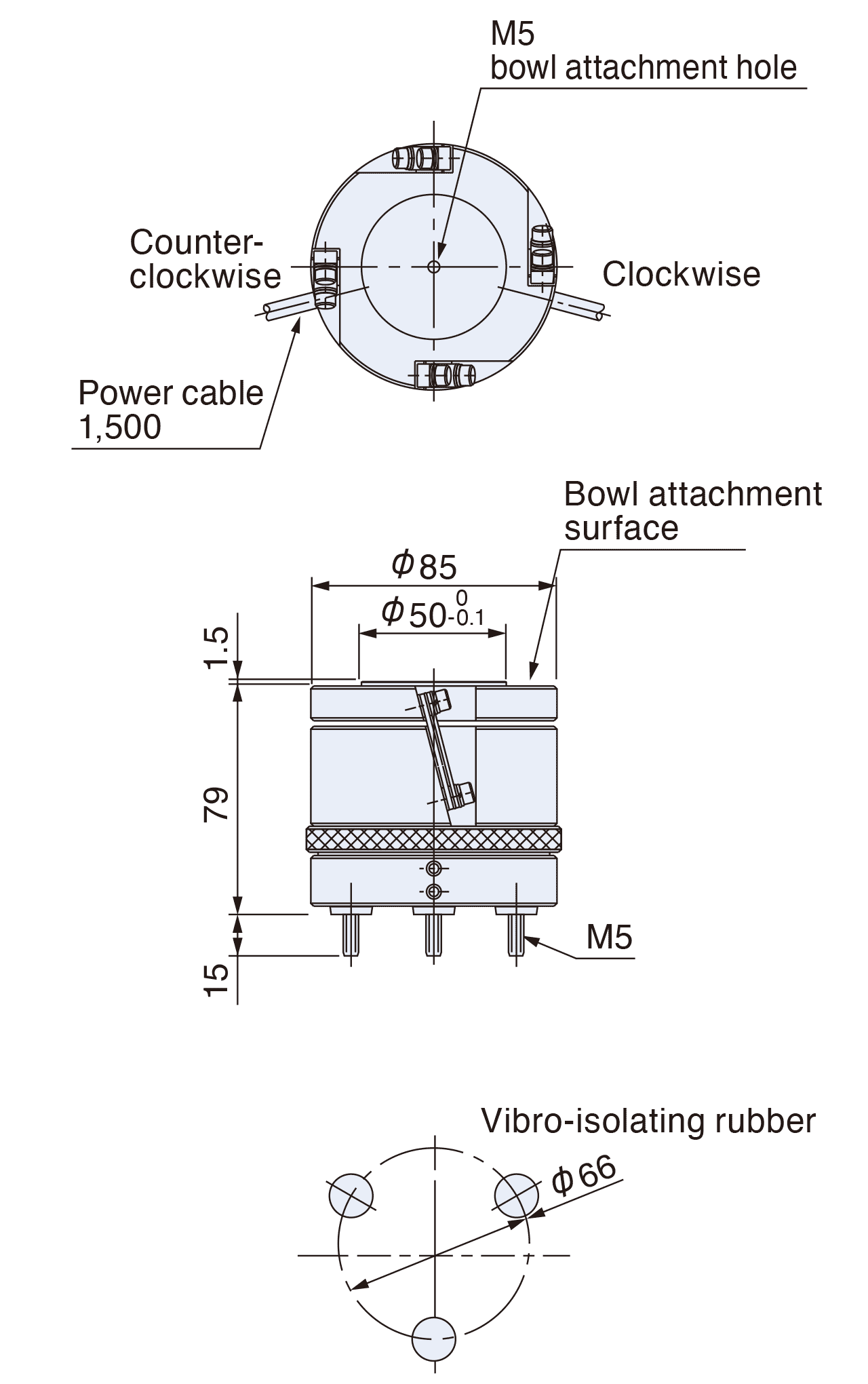

HME-08C

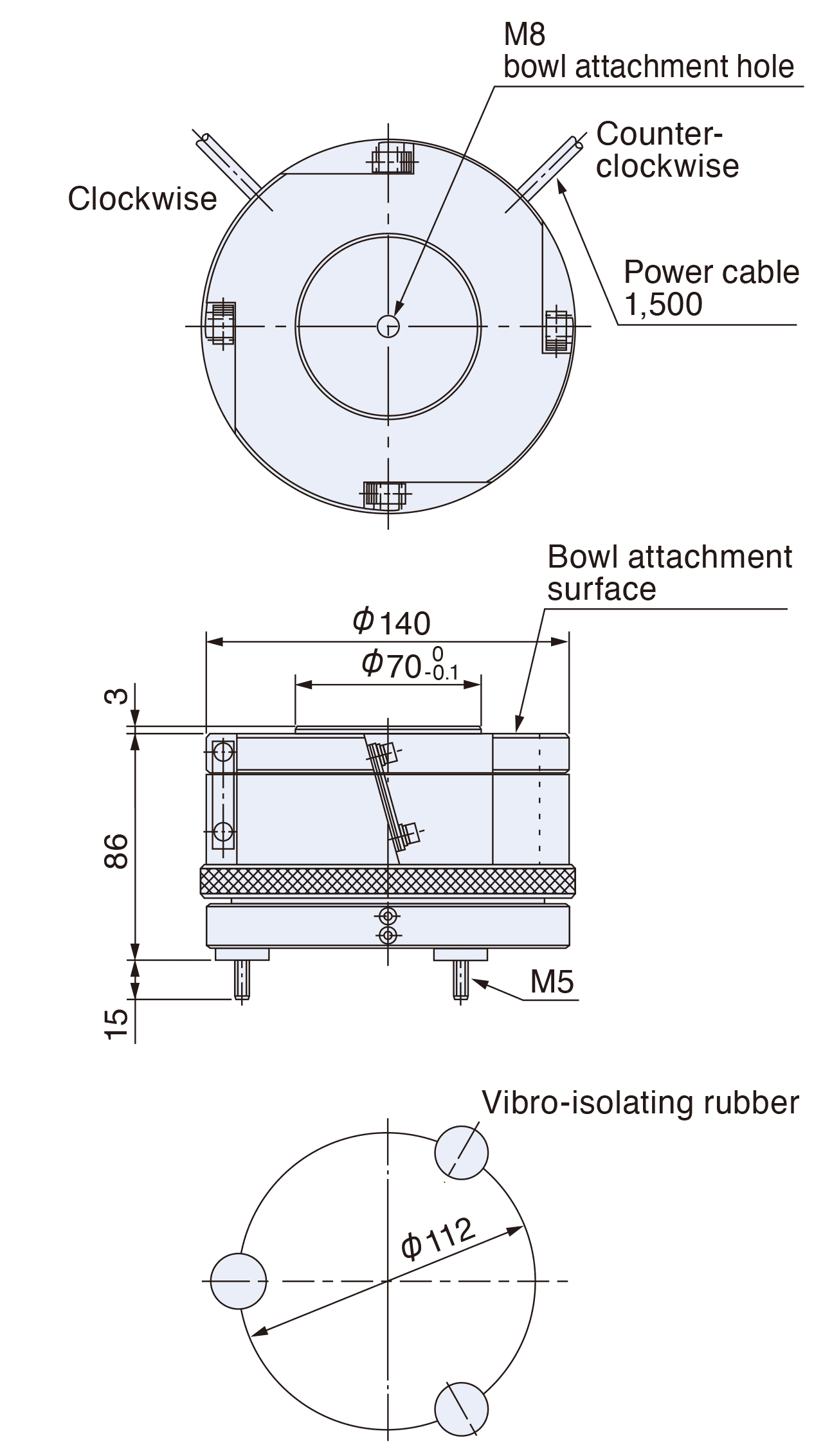

HME-14C

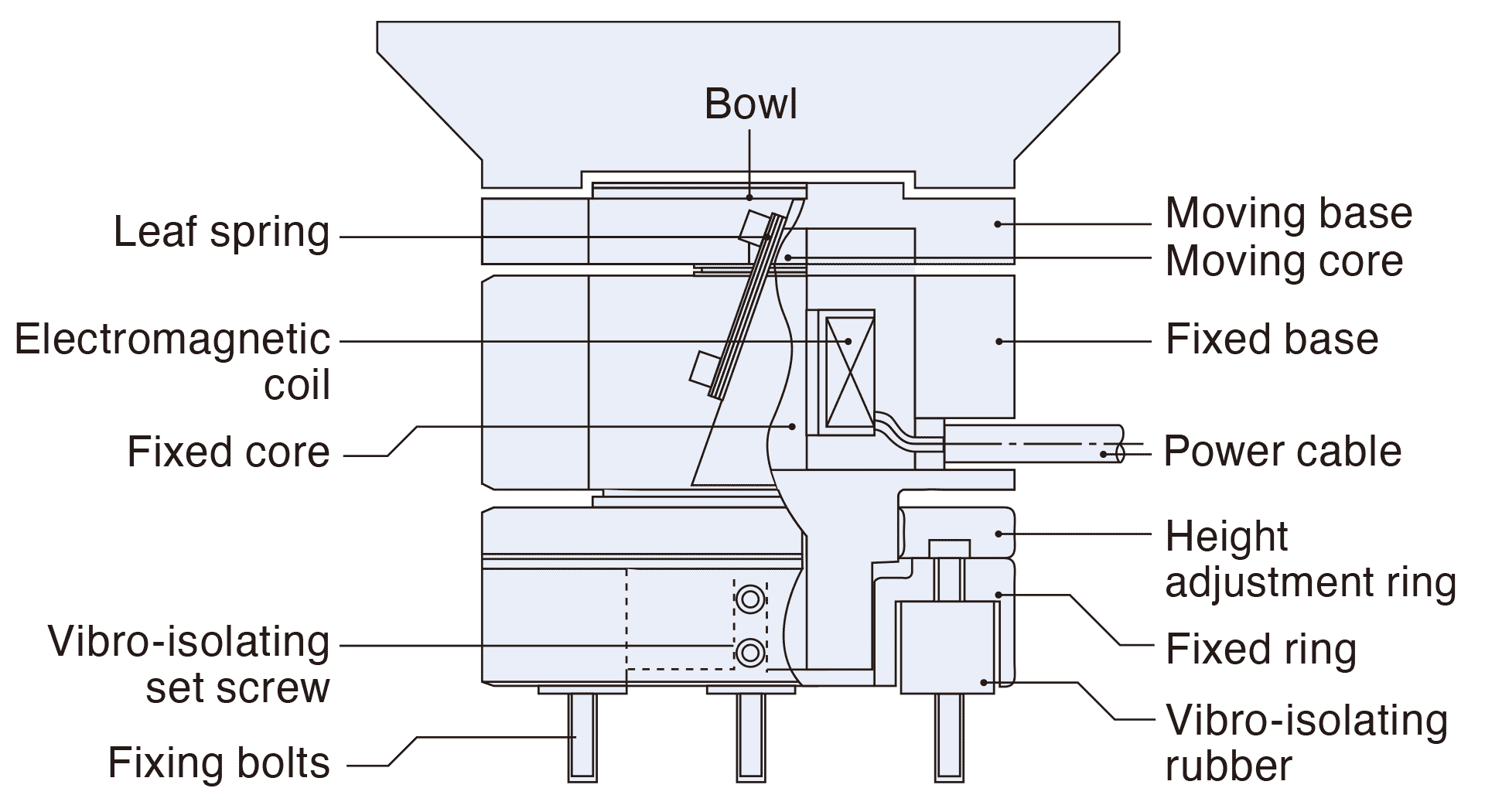

HME/HSE Structure
HME/HSE Structure
Parts Feeder Specifications
| Model | Rated Voltage (V) |
Rated Current (A) |
Vibration Frequency (Hz) |
Weight (kg) |
Loaded Weight (kg) |
Max. bowl diameter (mm) |
Compatible standard controller |
|---|---|---|---|---|---|---|---|
| HME-08C | 100/110 | 0.20 | 220~360 | 2.5 | 0.6 | φ140 | C10-1VF C10-1VFEF C9-03VFTC |
| HME-14 | 0.50 | 7.8 | 2.0 | φ230 | |||
| HSE-14 | 9.3 |
