Linear Parts Feeder
Costomized product
It’s not only compact but also as powerful as bowl type feeder.
Linear parts feeder is suitable for space saving because it requires 1/5 space compared with bowl type feeder without losing its power. It is able to supply micro electronic parts such as 1005-0603 chips quickly and precisely. Moreover, it is easy to carry because it’s light and compact.
Work Piece Diagram
Specifications
| Model | Linear Parts Feeder |
|---|---|
| Feeding Rate | 3000pieces/min |
| Achievement Rate | 99.9% |
| Vibration Frequency | Main Trough: 220~360Hz Return Trough: 100~160Hz |
| Rated Current | Main Trough: 0.3A Return Trough: 0.16A |
| Voltage | 100V |
| Weight | approx.8kg |
| Controller |
C9-03VFT |

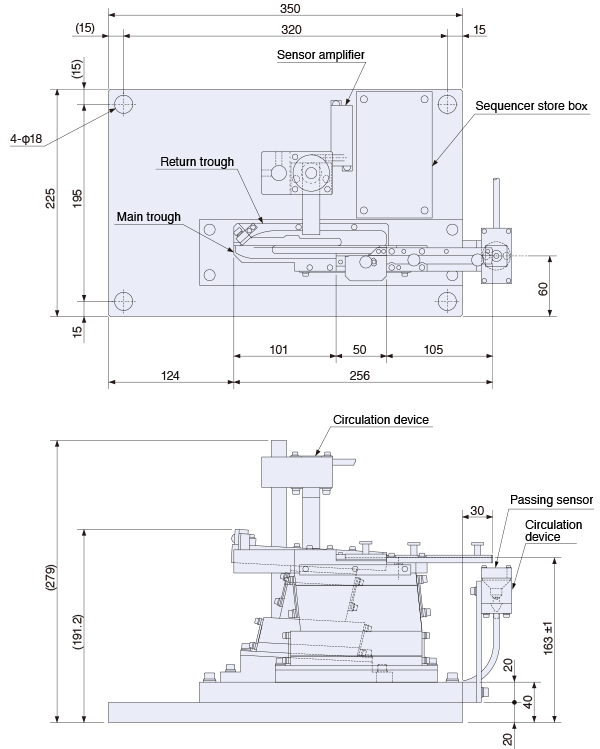

Dimensions
Unit: mm
