Vibrating Equipment

Above Deck Drive Standard Trough

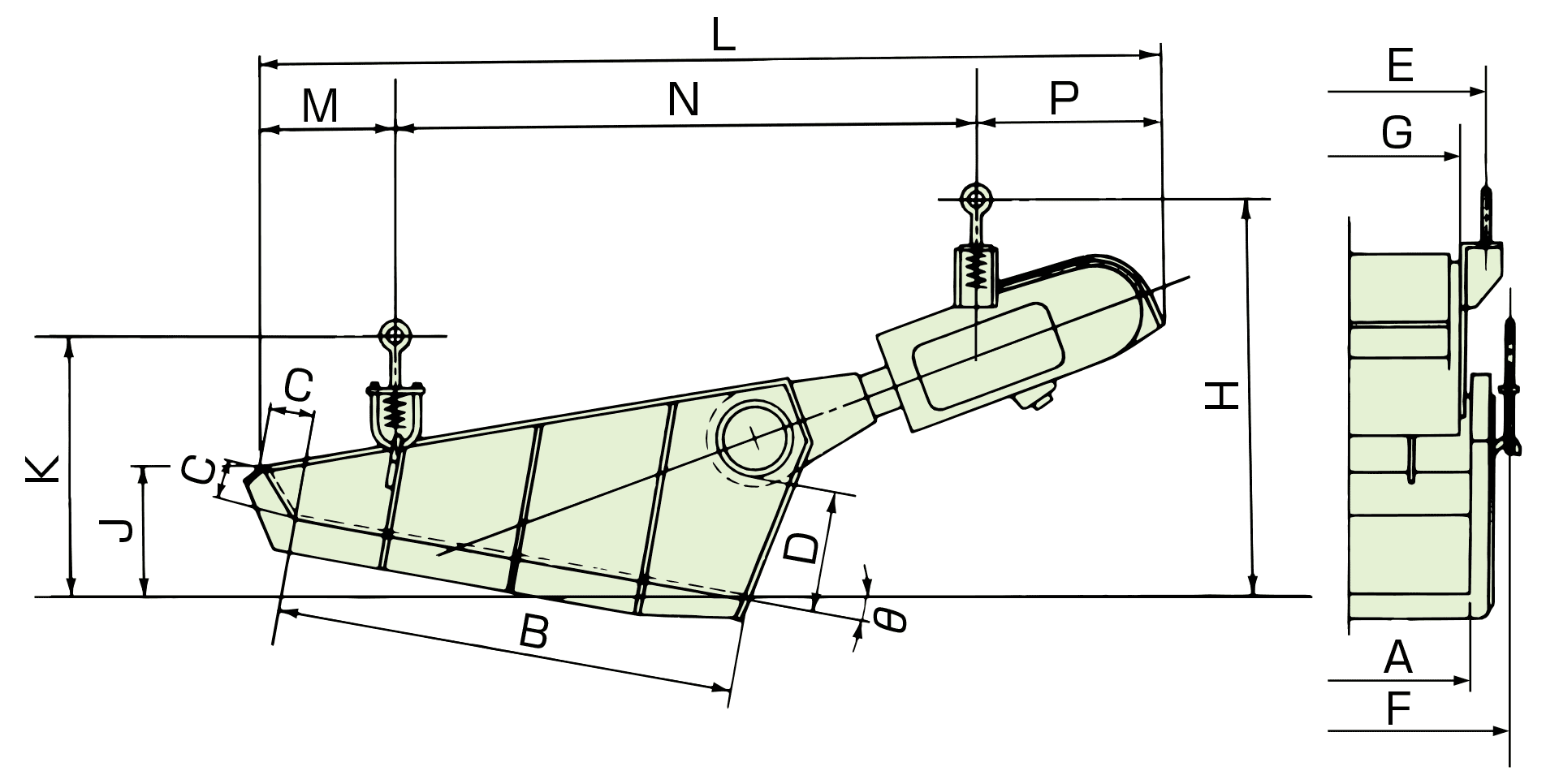

Dimension Table

Unit: mm

Model	A	B	C	D	E	F	G	θ	H	J	K	L	M	N	P
F-212BDT	300	762	80	180	412	396	310	10°	550	225	365	1340	235	840	265
	350	500	80	153	412	446	310	0°	580	80	270	1149	199	680	270
	450	550	80	160	412	546	310	0°	590	80	285	1190	115	800	275
F-22BDT	350	914	90	230	500	446	380	10°	760	265	450	1635	265	1085	285
	400	914	90	230	500	496	380	10°	760	265	450	1635	265	1085	285
	410	750	80	180	500	506	380	10°	630	220	405	1580	200	1100	280
FH-22BDT	450	914	90	230	500	546	380	10°	760	265	450	1635	265	1085	285
	500	914	90	230	500	650	380	12°	750	290	475	1645	255	1100	290
	550	900	100	230	500	646	380	0°	835	100	340	1880	310	1270	300
F-33BDT	550	1067	100	280	628	722	508	10°	915	310	600	2110	320	1350	440
F-33BDT	458	1067	100	280	638	820	508	10°	915	310	430	2085	320	1325	440
FH-33BDT	600	1067	100	280	666	772	546	10°	915	310	600	2110	320	1350	440
F-44BDT	750	1219	120	350	958	970	760	10°	1055	355	685	2635	345	1730	560
F-44BDT	750	1067	120	350	958	970	760	10°	1045	340	675	2560	270	1730	560
F-45BDT	900	1524	150	460	1143	1120	760	10°	1370	440	785	3040	465	2000	575
FH-45BDT	1050	1524	150	460	1143	1270	840	10°	1370	440	785	3040	465	2000	575

Trough inclination θ may be changed according to feeding capacity or installation conditions.
