High Power Density Motor & Controller for Electrified Aircraft Propulsion
R&D Products
500kW
Motor
|
Motor output |
500 kW (at rated load) |
|---|---|
|
Power density |
5 kW/kg |
|
Efficiency |
95% (at rated load) |
|
Maximum speed |
2,200 rpm |
|
Continuous torque |
2,513 Nm (at 1,900 rpm) |
Controller
|
Output capacitance |
550 kW (at rated load) |
|---|---|
|
Power density |
5 kW/kg |
|
Efficiency |
98% (at rated load) |
|
Input voltage |
750 to 1,000 V |
1MW

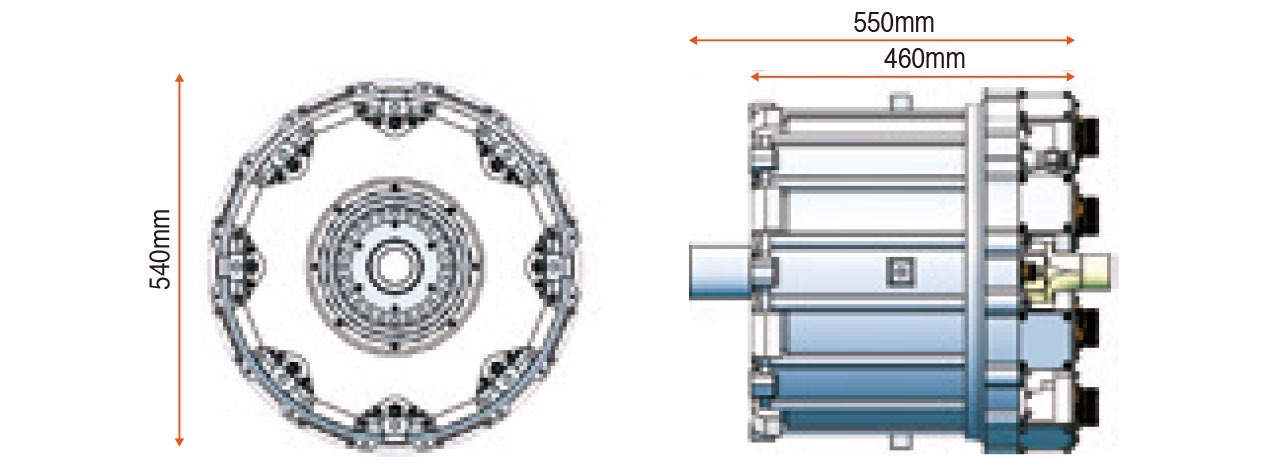

Motor
|
Motor output |
1MW (at rated load) |
|---|---|
|
Power density |
5～10kW/kg |
|
Efficiency |
95% (at rated load) |
|
Maximum speed |
2,200 rpm |
|
Continuous torque |
5,026Nm (at 1,900 rpm) |

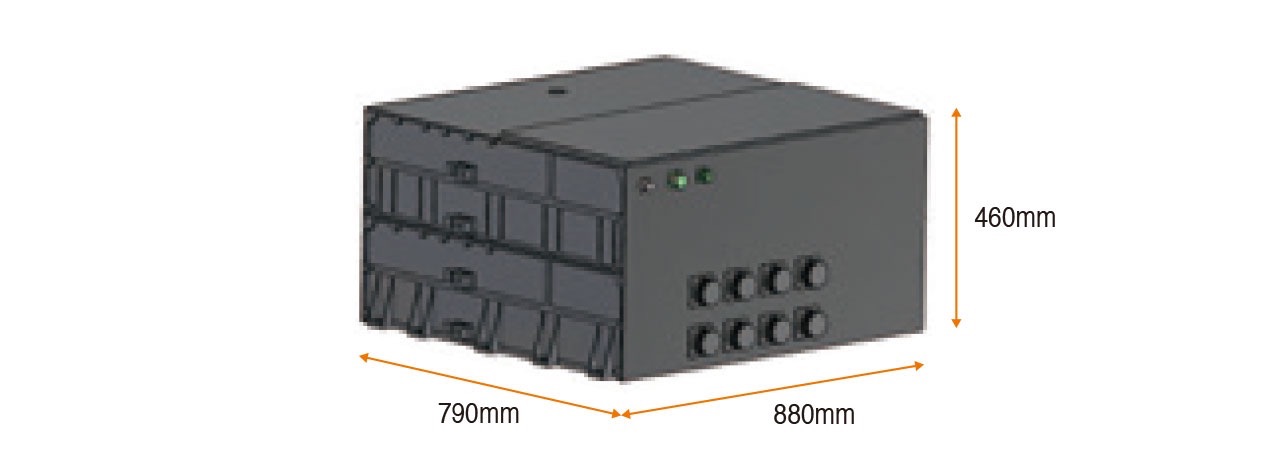

Controller
|
Output capacitance |
1.1MW (at rated load) |
|---|---|
|
Power density |
5～10kW/kg |
|
Efficiency |
98% (at rated load) |
|
Input voltage |
750 to 1,000 V |
